THROTTLE CABLE

Service repair no - 19.20.06

Remove

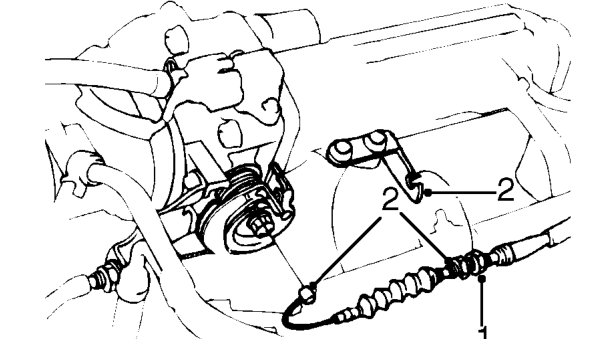

Throttle cable – Service repair no - 19.20.06
  1. Loosen locknut securing throttle cable to abutment bracket.
  2. Release outer cable from abutment bracket and inner cable from throttle cam.

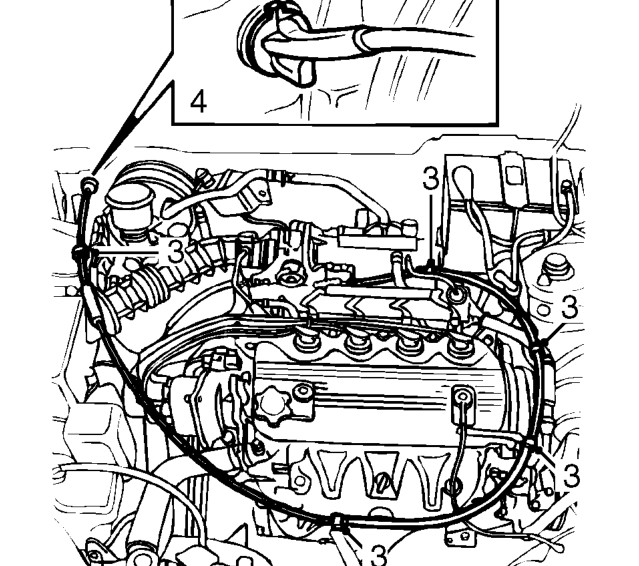

Throttle cable – Release outer cable from abutment bracket and inner cable from throttle cam.

Up to 97.5 MY illustrated

  1. Release outer cable from 5 clips.1
  2. Rotate outer cable turnbuckle a /4 of a turn anti-clockwise to release from bulkhead.

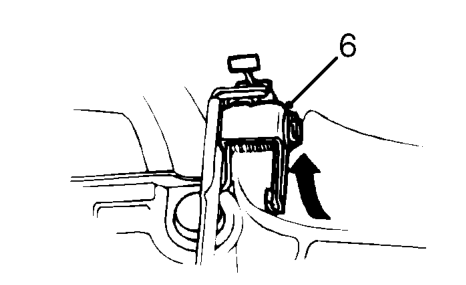

Up to 97.5 my illustrated – Rotate outer cable turnbuckle a /4 of a turn anti-clockwise to release from bulkhead.
  1. Pull cable attachment bracket upwards and release cable.
  2. Remove cable.

Refit

  1. Smear rubber grease on both sides of bulkhead seal.
  2. Insert cable through bulkhead and secure turnbuckle.
  3. Pull cable attachment bracket upwards and connect inner cable to pedal.
  4. Secure cable to clips.
  5. Connect inner cable to throttle cam and outer cable to abutment bracket.
  6. Adjust throttle cable, See Adjustments.
