Engine coolant temperature sensor

ENGINE COOLANT TEMPERATURE SENSOR

Service repair no - 18.30.10

Remove

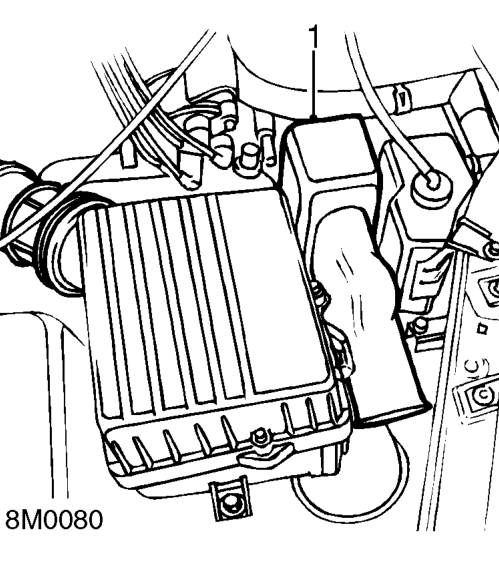

1. Remove air intake duct.

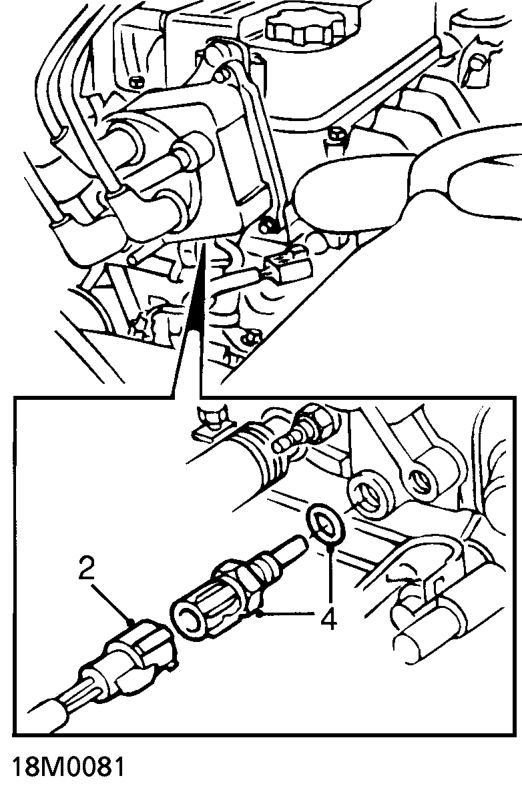

2. Disconnect multiplug from coolant temperature sensor.
3. Position container below sensor.
4. Remove coolant temperature sensor and discard ’O’ ring.

Refit

1. Clean threads of coolant temperature sensor.
2. Fit new ’O’ ring.
3. Fit coolant temperature sensor and tighten to 18 Nm.
4. Connect multiplug to coolant temperature sensor.
5. Fit air intake duct.
6. Top-up coolant. See MAINTENANCEMaintenance.
