Throttle body - up to 97.5 my

THROTTLE BODY - UP TO 97.5 MY

Service repair no - 19.22.45

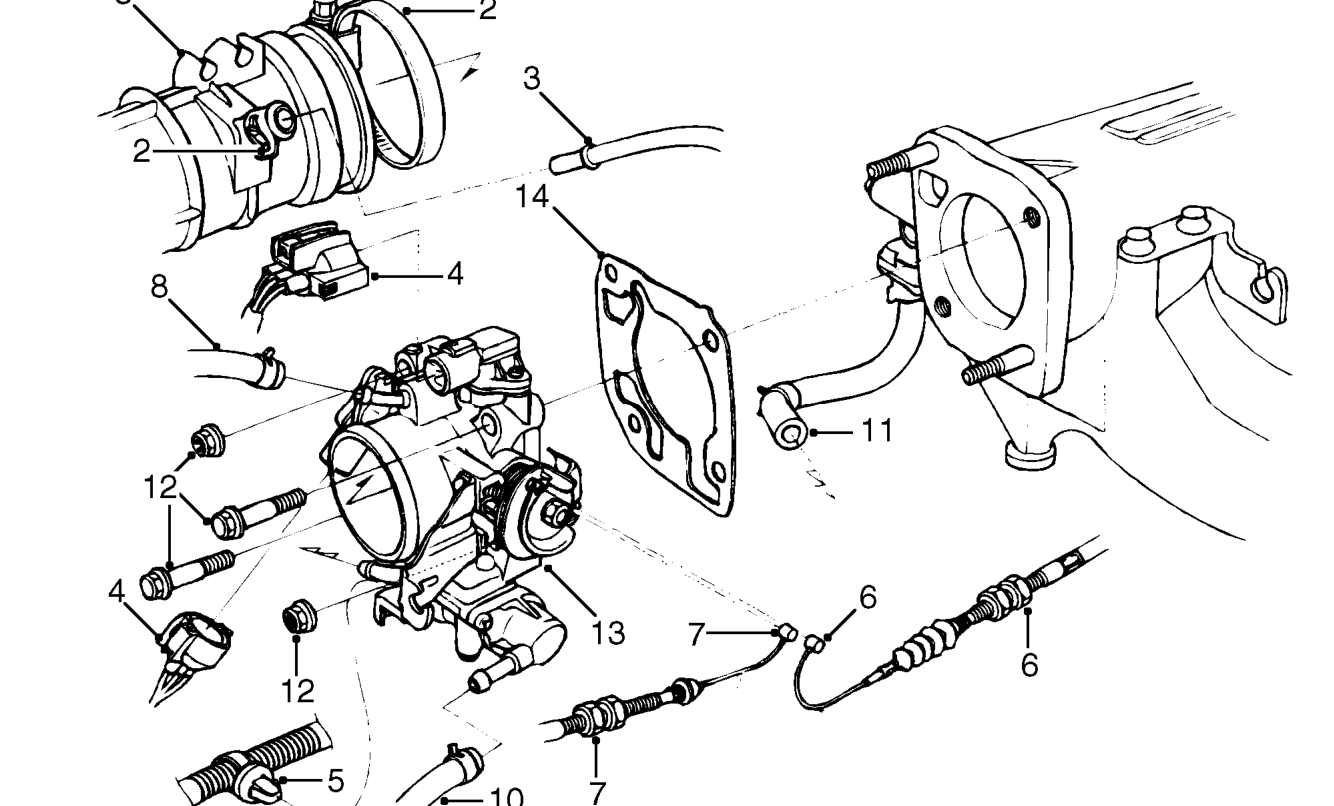

Remove

1. Disconnect battery earth lead.

2. Loosen clip securing air intake hose to inlet manifold and release clip securing intake hose to breather pipe.
3. Disconnect hose from throttle body and breather pipe. Remove hose from air cleaner.
4. Disconnect multiplugs from manifold absolute pressure sensor and throttle position sensor.
5. Release harness clip from bracket.
6. Loosen throttle cable locknut. release outer cable from abutment bracket and inner cable from throttle cam.
7. Loosen downshift control cable locknut. release outer cable from abutment bracket and inner cable throttle cam.
8. Release clip and disconnect purge hose.
9. Position container below throttle body.
10. Release clip and disconnect hose from fast idle thermo valve.
11. Release clip and disconnect idle air control valve hose from throttle body.
12. Remove 2 nuts and 2 bolts securing throttle body.
13. Remove throttle body.
14. Remove and discard gasket.
