Engine management system - PGMFiManifold absolute pressure sensor

MANIFOLD ABSOLUTE PRESSURE SENSOR

Service repair no - 18.30.56

Remove

  1. Disconnect battery earth lead.

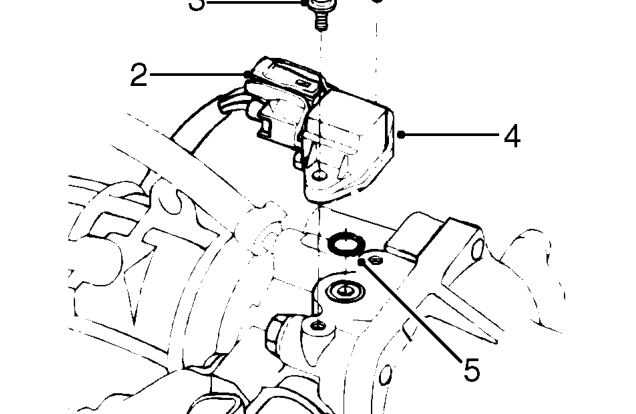

Manifold absolute pressure sensor – Disconnect battery earth lead.
  1. Disconnect sensor multiplug.
  2. Remove 2 screws securing sensor to inlet manifold.
  3. Remove sensor.
  4. Remove and discard ’O’ ring.

Refit

  1. Clean sensor mating faces and ’O’ ring recess in manifold.
  2. Fit new ’O’ ring to recess in manifold.
  3. Fit sensor and tighten screws.
  4. Connect sensor multiplug.
  5. Connect battery earth lead.

OXYGEN SENSOR

Service repair no - 19.22.16

Remove

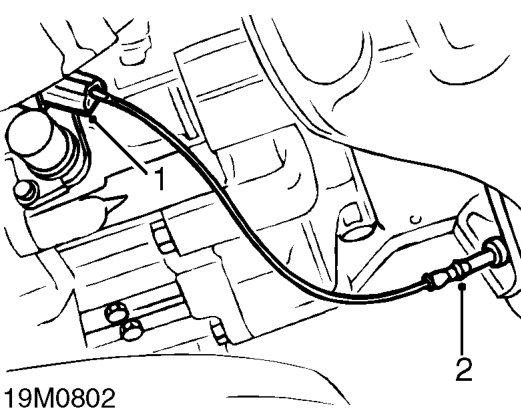

Oxygen sensor – Service repair no - 19.22.16
  1. Release oxygen sensor multiplug from bracket and disconnect multiplug.
  2. Pass a 22 mm ring spanner over oxygen sensor lead and remove sensor.

Refit

  1. Fit oxygen sensor and tighten to 44 Nm.
  2. Connect multiplug and secure to bracket
