Rover 400 Workshop Manual (1995-2000)11 · Engine management system - PGMFi
11 · Engine

Spark plugs

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Spark plugs
Engine management system - PGMFiSpark plugs

SPARK PLUGS

Service repair no - 18.20.02

Remove

Spark plugs – Service repair no - 18.20.02

Up to 97.5 MY illustrated

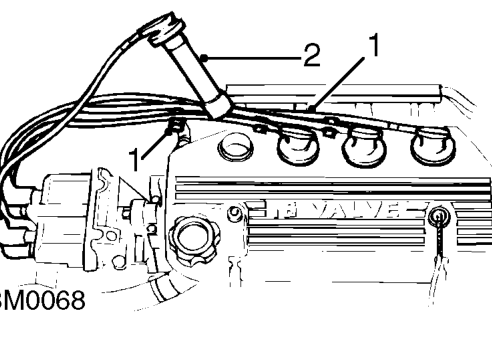

  1. Release 2 h.t. lead clips from brackets on camshaft cover.
  2. Disconnect h.t. leads from spark plugs.
Up to 97.5 my illustrated – Disconnect h.t. leads from spark plugs.

Up to 97.5 MY illustrated

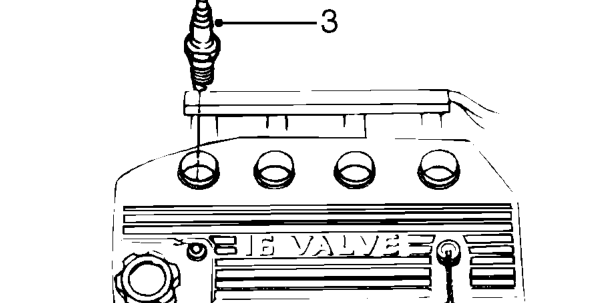

  1. Using a 16 mm spark plug socket, remove 4 spark plugs.

Refit

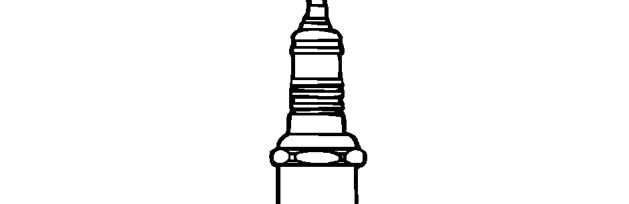

  1. Fit terminals to new spark plugs.
Up to 97.5 my illustrated – Fit terminals to new spark plugs.
  1. Set gap of each new spark plug to 1.0 mm.
  2. Fit spark plugs and tighten to 18 Nm.
  3. Connect h.t. leads to spark plugs.
  4. Secure h.t. lead clips to brackets on camshaft cover.
