Distributor - up to 97.5 my

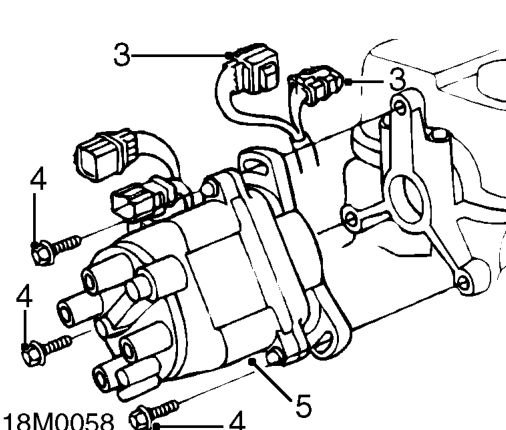

DISTRIBUTOR - UP TO 97.5 MY

Service repair no - 18.20.20

Remove

1. Disconnect battery earth lead.
2. Noting their fitted positions, disconnect 4 h.t. leads from distributor cap.

3. Release 2 multiplugs from clips and disconnect multiplugs.
4. Remove 3 bolts securing distributor.
5. Remove distributor.

Refit

1. Release 3 screws securing cap on new distributor, remove cap.
2. Lubricate ’O’ ring with engine oil and fit to distributor.
3. Position distributor and rotate rotor arm to engage drive lugs with mating grooves in camshaft.

NOTE: Lugs on end of distributor and grooves in camshaft are offset to ensure that distributor can only be fitted in one position.

4. Fit 3 bolts securing distributor and tighten temporarily.
5. Connect multiplugs and secure to clips.
6. Fit distributor cap and tighten screws.
7. Identify and connect h.t. leads.
8. Connect battery earth lead.
9. Reset ignition timing. See Adjustments.
10. Tighten bolts securing distributor to 24 Nm.

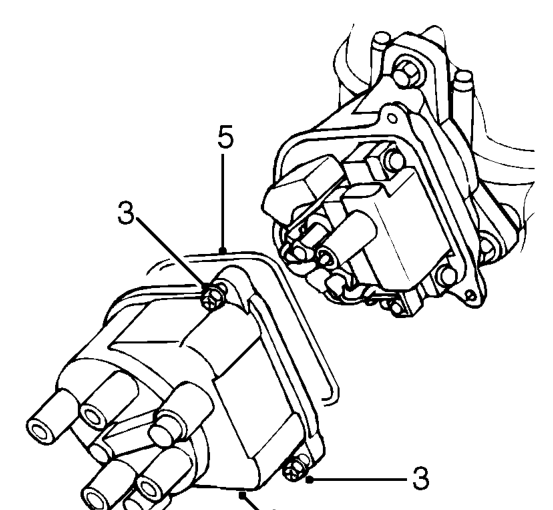

DISTRIBUTOR CAP - UP TO 97.5 MY

Service repair no - 18.20.10

Remove

1. Disconnect battery earth lead.
2. Noting their fitted positions, disconnect 4 h.t. leads from distributor cap.

3. Release 3 captive screws securing distributor cap.
4. Remove distributor cap.
5. Remove distributor cap seal.

Refit

1. Inspect distributor cap seal for damage. Replace if necessary.
2. Clean distributor cap seal location and fit seal.
3. Position distributor cap and tighten screws.
4. Connect h.t. leads to distributor cap.
5. Connect battery earth lead.
