Rover 400 Workshop Manual (1995-2000)10 · Engine management system - MEMS
10 · Engine

Air cleaner element - ’k’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Air cleaner element - ’k’ series
Engine management system - MEMSAir cleaner element - ’k’ series

AIR CLEANER ELEMENT - ’K’ SERIES

Service repair no - 19.10.10

Remove

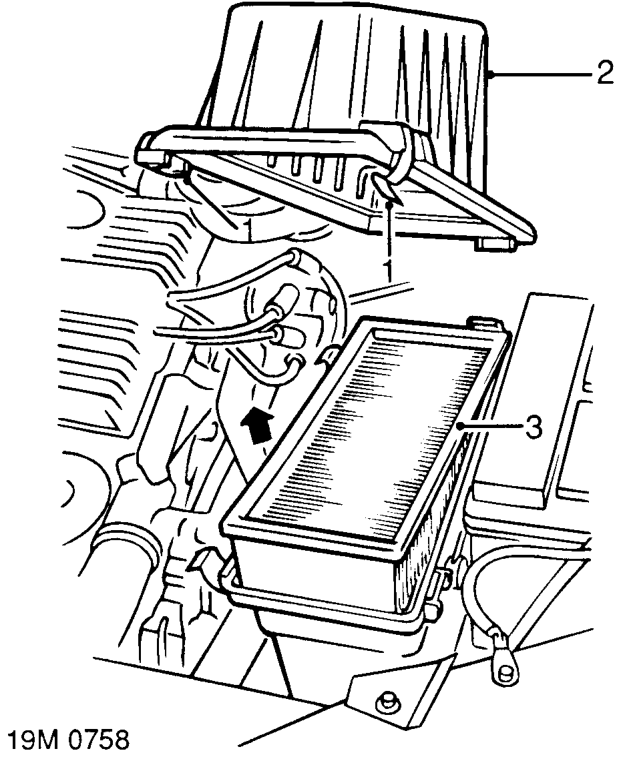

Air cleaner element - ’k’ series – Service repair no - 19.10.10
  1. Release 4 clips securing 2 halves of air cleaner together.
  2. Release top half of air cleaner and position aside.
  3. Remove and discard air cleaner element.

Refit

  1. Clean inside of air cleaner casing.
  2. Fit new air cleaner element in casing.
  3. Position top half of air cleaner casing and secure with clips.

THROTTLE CABLE - ’K’ SERIES

Service repair no - 19.20.06

Remove

RHD models only

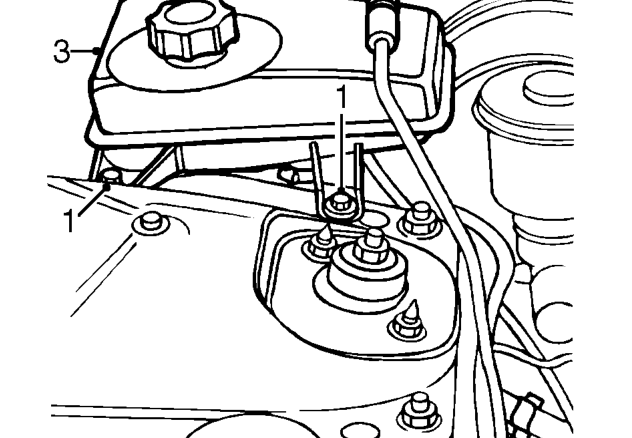

Rhd models only – Service repair no - 19.20.06
  1. Remove 2 bolts securing expansion tank to body.
  2. Release coolant feed hose from clip on body.
  3. Release expansion tank from body and position aside.

All models

All models – Release expansion tank from body and position aside.
  1. Release cable adjusting nut from abutment bracket.
  2. Release inner cable from cam.
