HEATED OXYGEN SENSOR - ’K’ SERIES

Service repair no - 19.22.16

Remove

Heated oxygen sensor - ’k’ series – Service repair no - 19.22.16

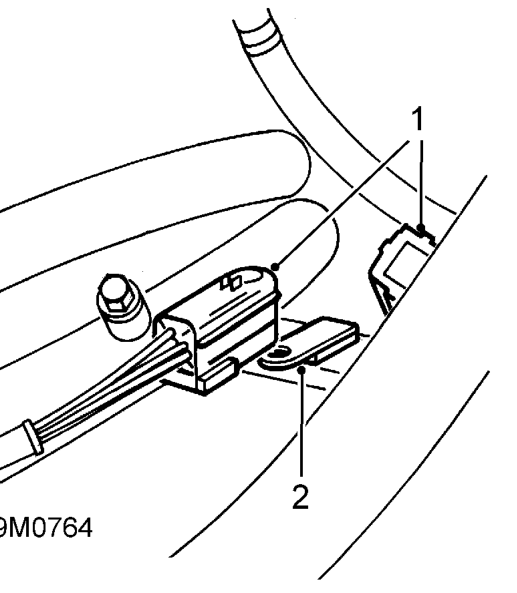

  1. Disconnect heated oxygen sensor multiplug.
  2. Release multiplug from bracket.
Heated oxygen sensor - ’k’ series – Release multiplug from bracket.

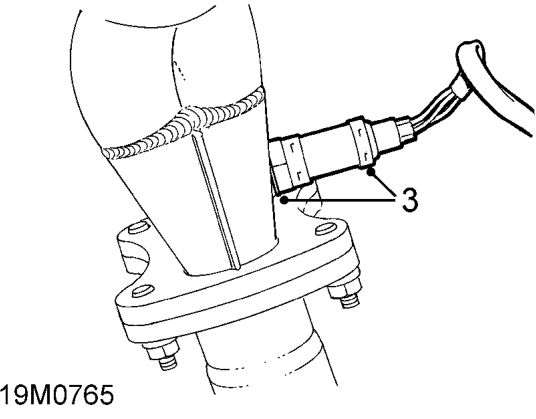

  1. Using a 22 mm open ended spanner remove heated oxygen sensor and collect sealing washer.

Refit

  1. Fit sealing washer to heated oxygen sensor.
  2. Fit heated oxygen sensor and tighten to 55 Nm.
  3. Secure multiplug to bracket.
  4. Connect heated oxygen sensor multiplug.

FUEL RAIL AND INJECTORS - ’K’ SERIES

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
Fuel rail and injectors - ’k’ series – Disconnect battery earth lead.

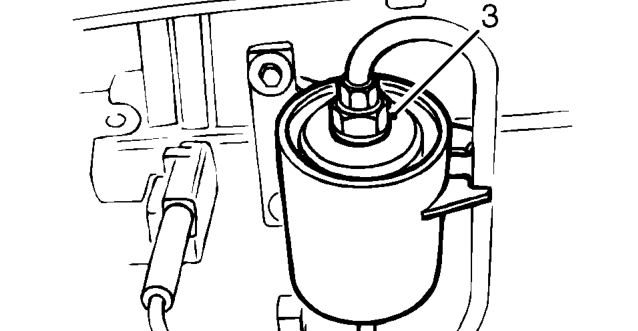

  1. Position absorbent cloth around fuel filter outlet union.
  2. Slacken union to relieve fuel pressure then re-tighten.

CAUTION: To prevent damage to fuel system pipes or components use two spanners when loosening or tightening unions.
