Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)10 · Engine management system - MEMS
10 · Engine

Knock sensor - ’t’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Knock sensor - ’t’ series
Engine management system - MEMSKnock sensor - ’t’ series

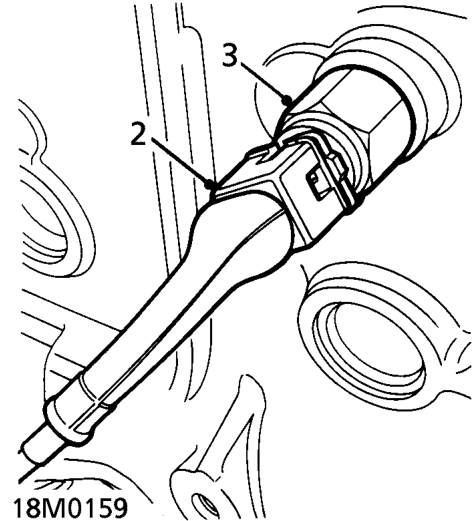

KNOCK SENSOR - ’T’ SERIES

Service repair no - 18.30.28

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Knock sensor - ’t’ series – Raise front of vehicle.
  1. Disconnect multiplug from sensor.
  2. Remove sensor.

Refit

  1. Clean sensor and mating face.
  2. Fit sensor and tighten to 12 Nm .
  3. Connect multiplug to sensor.
  4. Remove stand(s) and lower vehicle.

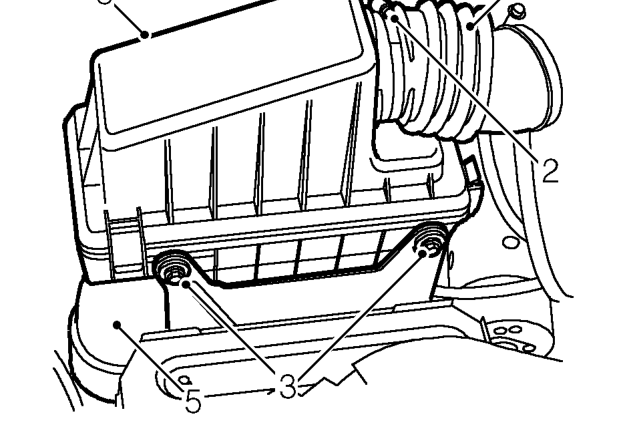

AIR CLEANER - ’T’ SERIES

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.
Air cleaner - ’t’ series – Remove battery. See ELECTRICAL, Repairs.
  1. Loosen clip screw securing intake pipe to air cleaner.
  2. Remove 2 bolts securing air cleaner to battery tray.
  3. Release intake pipe from air cleaner.
  4. Release air cleaner from air intake hose.
  5. Remove air cleaner.

Refit

  1. Position air cleaner in vehicle and connect to air intake hose.
  2. Align air cleaner to battery tray.
  3. Fit and tighten 2 bolts securing air cleaner to battery tray.
  4. Connect intake pipe to air cleaner, and secure with clip.
  5. Fit battery. See ELECTRICAL, Repairs.
