Engine management system - MEMSEngine management relay module - ’t’ series

Refit

  1. Fit engine control module to mounting bracket lower fixing grommet and align to studs.
  2. Fit 2 nuts securing engine control module to mounting bracket and tighten to 9 Nm.
  3. Connect vacuum hose to engine control module.
  4. Connect multiplug to engine control module.
  5. Connect battery earth lead.

NOTE: If a NEW engine control module has been fitted, the engine control module will need to be programmed with the code from the anti-theft security unit using TestBook, before the engine can be started.

ENGINE MANAGEMENT RELAY MODULE - ’T’ SERIES

Service repair no - 18.30.06

Remove

  1. Remove engine control module. See this section.

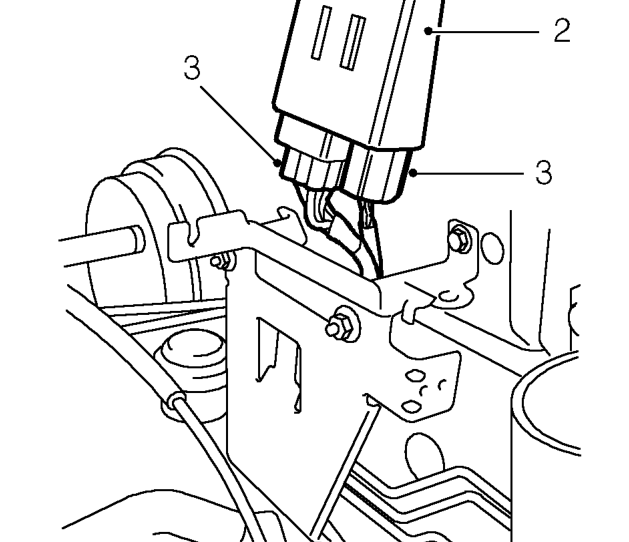

Engine management relay module - ’t’ series – Remove engine control module. See this section.
  1. Release relay module from engine control Module mounting bracket.
  2. Disconnect 2 multiplugs from relay module.
  3. Remove relay module.
