HORN PUSH SWITCH

Service repair no - 86.30.01

Remove

  1. Remove drivers airbag module. See RESTRAINT SYSTEMS, Repairs.

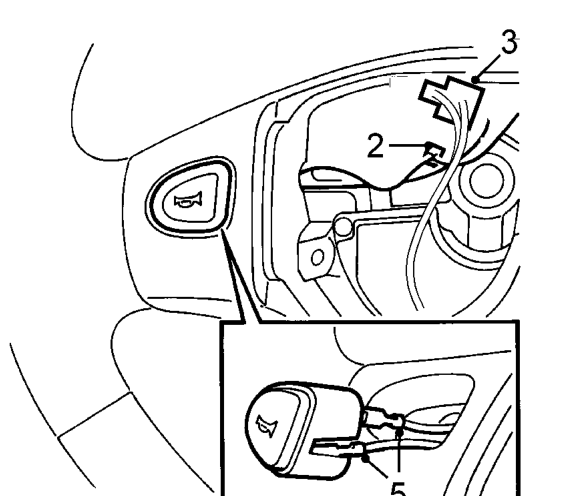

Horn push switch – Remove drivers airbag module. See RESTRAINT SYSTEMS, Repairs.
  1. Release earth connector from steering wheel base.
  2. Disconnect multiplug from steering column rotary coupler.
  3. Using a flat blade carefully ease switch from steering wheel.
  4. Disconnect 2 Lucars from switch.
  5. Remove horn push switch.

Refit

  1. Position horn push switch and connect 2 lucars to switch.
  2. Fit switch to steering wheel.
  3. Connect multiplug to steering column rotary coupler.
  4. Secure earth connector to steering wheel base.
  5. Fit drivers airbag module. See RESTRAINT SYSTEMS, Repairs.

HORN

Service repair no - 86.30.10

Remove

  1. Remove front bumper See BODY, Exterior fittings.

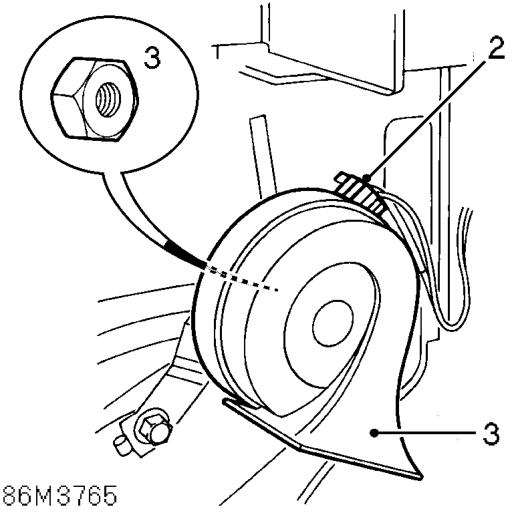

Horn – Remove front bumper See BODY, Exterior fittings.
  1. Disconnect multiplug from horn.
  2. Remove nut securing horn to mounting bracket and remove horn.

Refit

  1. Position horn, tighten nut to 22 Nm.
  2. Connect multiplug to horn.
  3. Refit front bumper. See BODY, Exterior fittings.
