ALTERNATOR - ’L’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See this section.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.

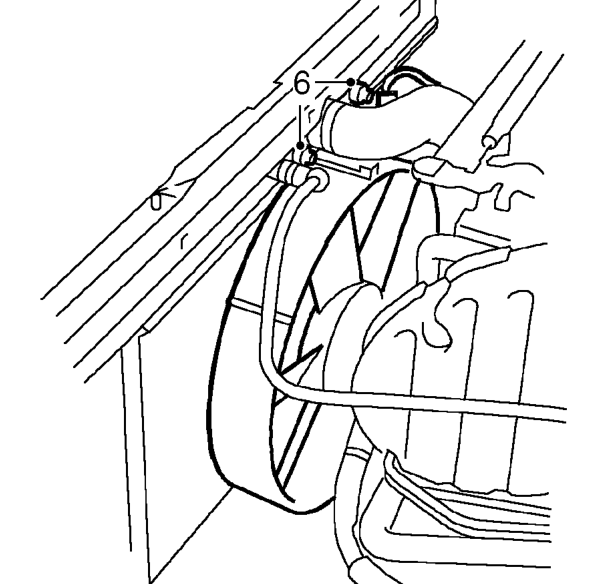

  3. Models with intercooler: Loosen 2 clips and remove intercooler outlet hose.
Alternator - ’l’ series without air conditioning – Models with intercooler: Loosen 2 clips and remove intercooler outlet hose.

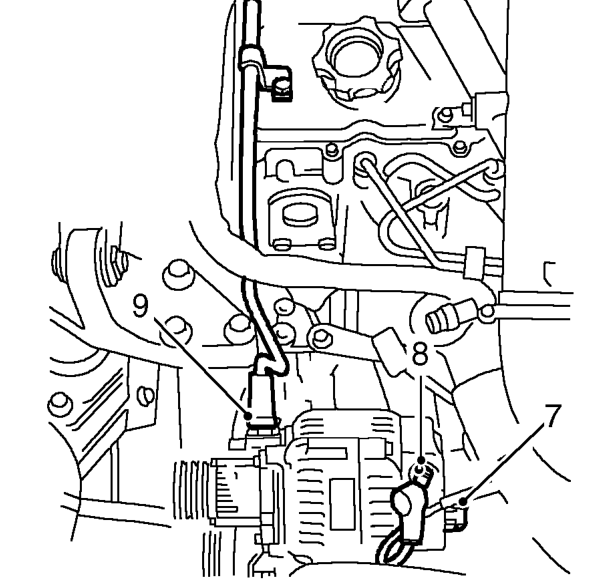

  1. Remove 2 bolts securing cooling fan cowl to radiator, release cowl from lower fixing and position aside.
Alternator - ’l’ series without air conditioning – Remove 2 bolts securing cooling fan cowl to radiator, release cowl from lower fixing and p
  1. Disconnect multiplug from alternator.
  2. Release cover, remove nut and disconnect battery cable from alternator.
  3. Release clip and disconnect vacuum hose from vacuum pump.

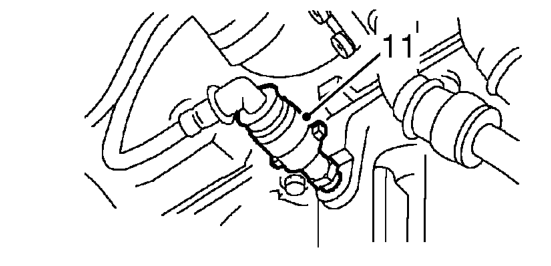

  4. Position container to collect oil spillage.
Alternator - ’l’ series without air conditioning – Position container to collect oil spillage.
  1. Disconnect vacuum pump oil return pipe from sump.
