DIM DIP RESISTOR - ’K’ SERIES

Service repair no - 86.55.92

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Dim dip resistor - ’k’ series – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

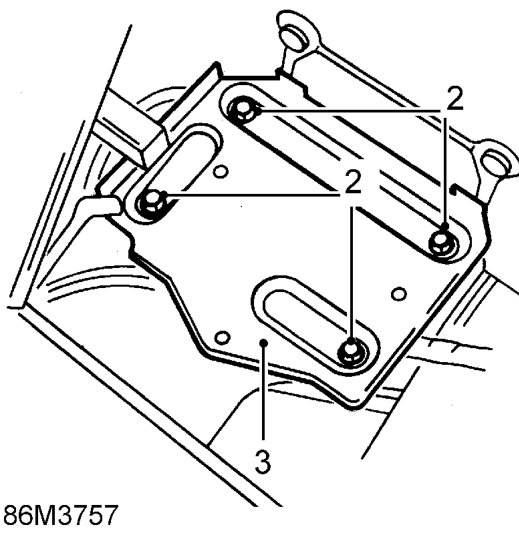

  1. Remove 4 bolts securing battery tray to mounting bracket.
  2. Remove battery tray.
Dim dip resistor - ’k’ series – Remove battery tray.

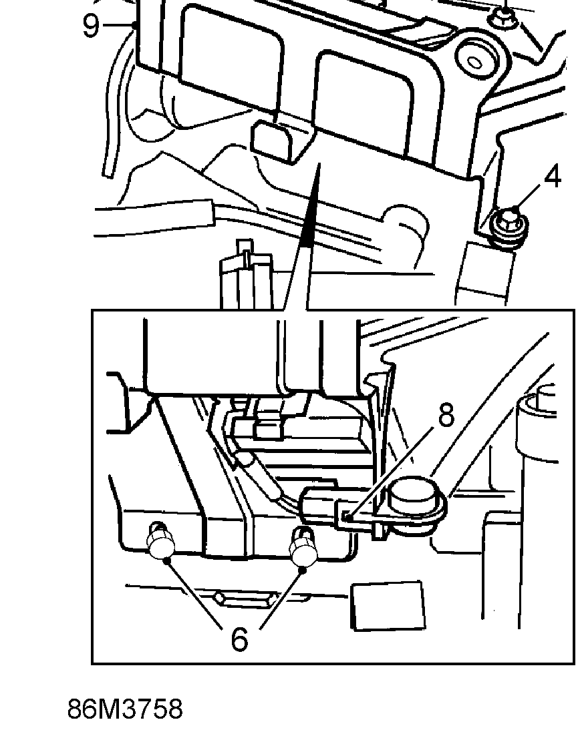

  1. Remove bolt securing air intake hose to battery tray mounting bracket.
  2. Remove 2 bolts securing battery tray mounting bracket to body.
  3. Loosen 2 bolts securing battery tray mounting bracket to body.
  4. Release clip securing harness to body and position harness aside.
  5. Disconnect multiplug from dim dip resistor.
  6. Remove battery tray mounting bracket.
Dim dip resistor - ’k’ series – Remove battery tray mounting bracket.

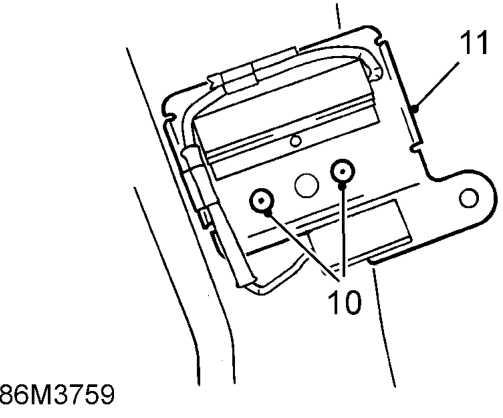

  1. Drill out 2 pop rivets securing dim dip resistor to underside of battery tray mounting bracket.
  2. Remove dim dip resistor.
