Starter motor - ’k’ series

Refit

1. Position alternator to engine.
2. Fit alternator lower mounting bracket.
3. Fit and tighten bolts to 44 Nm.
4. Align alternator to bracket and fit lower bolt and nut, do not tighten.
5. Fit bolt alternator to adjustment bracket, but do not tighten.
6. Fit alternator drive belt. See this section.
7. Connect lead to alternator and secure with nut. Secure terminal cover.
8. Connect alternator multiplug.
9. Fit underbelly panel. See BODY, Exterior fittings.
10. Connect battery earth lead.

STARTER MOTOR - ’K’ SERIES

Service repair no - 86.60.01

Remove

1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
2. Raise front of vehicle.

WARNING: Support on safety stands.

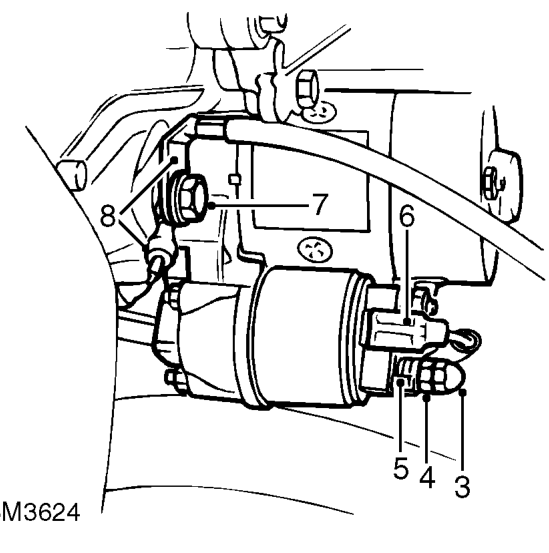

3. Remove plastic cap from nut securing battery cable to starter solenoid.
4. Remove nut securing battery cable to starter solenoid.
5. Disconnect battery cable from starter solenoid.
6. Disconnect Lucar from starter solenoid.
7. Remove upper bolt securing starter motor to engine.
8. Disconnect 2 earth leads from bolt.
