BodyUnderbelly panel

UNDERBELLY PANEL

Service repair no - 76.10.50

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

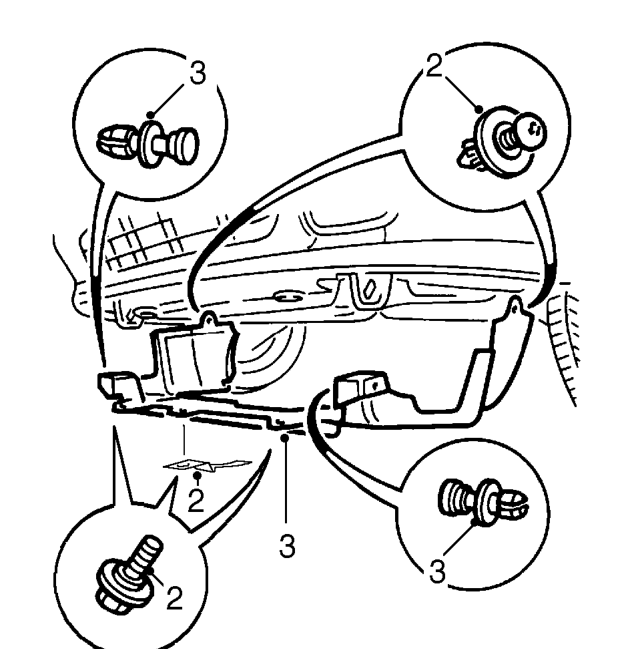

Underbelly panel – Raise front of vehicle.
  1. Remove 2 scrivets and 3 bolts securing underbelly panel. 97.5 MY on: Collect centre support bracket.
  2. Remove 2 trim fasteners and remove underbelly panel.

Refit

  1. Position underbelly panel and secure with trim fasteners. 97.5 MY on: Position support bracket.
  2. Fit scrivets and bolts to secure under belly panel.
  3. Remove stand(s) and lower vehicle.

EXTERIOR MIRROR

Service repair no - 76.10.52

Remove

  1. Remove front door trim casing. See Doors.

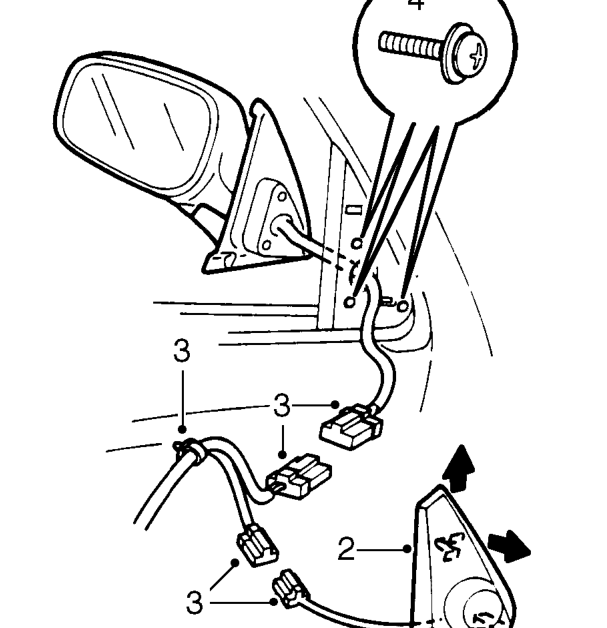

Exterior mirror – Remove front door trim casing. See Doors.
  1. Release door mirror cheater panel.
  2. Disconnect mirror harness multiplug and release harness clip from door.
  3. Remove 3 Torx screws securing mirror then remove mirror.

Refit

  1. Position mirror to door and tighten Torx screws to 4 Nm.
  2. Connect multiplug, position harness to clip and secure clip to door.
  3. Secure cheater panel.
  4. Refit front door trim casing. See Doors.
