Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Bonnet release cable

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Exterior fittings › Bonnet release cable
BodyBonnet release cable · page 1 of 2

Refit

  1. Using assistance position bumper to vehicle.

NOTE: Ensure bumper engages the side clip and hook on each side.

  1. Fit scrivets and clips securing bumper.
  2. Fit and tighten screws bumper ends to body.
  3. Close tailgate.

BONNET RELEASE CABLE

Service repair no - 76.16.29

Remove

  1. Remove bonnet lock.
  2. Remove wheel arch liner. See this section.

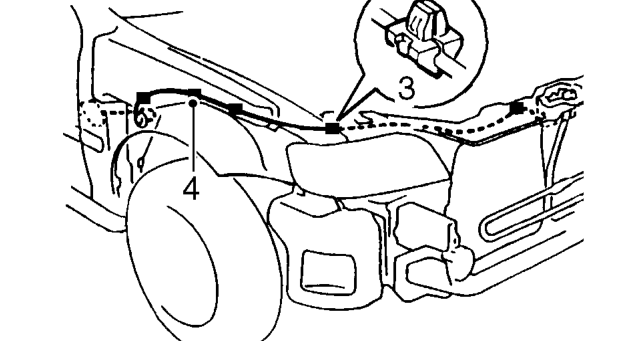

Bonnet release cable – Remove wheel arch liner. See this section.
  1. Remove release cable clip from bonnet support platform and remove clip from cable.
  2. Release 3 clips securing cable under wing and remove clips.
  3. Pull cable through to under wing.

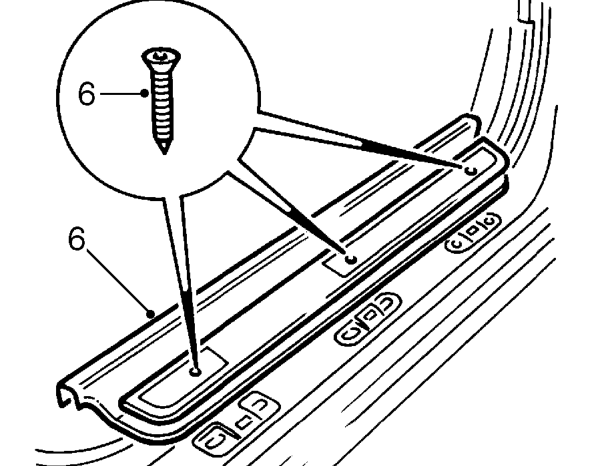

Bonnet release cable – Pull cable through to under wing.
  1. Remove 3 screws from carpet retainer at drivers door, remove tread plate and retainer.
