Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Front grille

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Exterior fittings › Front grille
BodyFront grille

FRONT GRILLE

Service repair no - 76.55.03

Remove

  1. Remove front bumper valance. See this section.

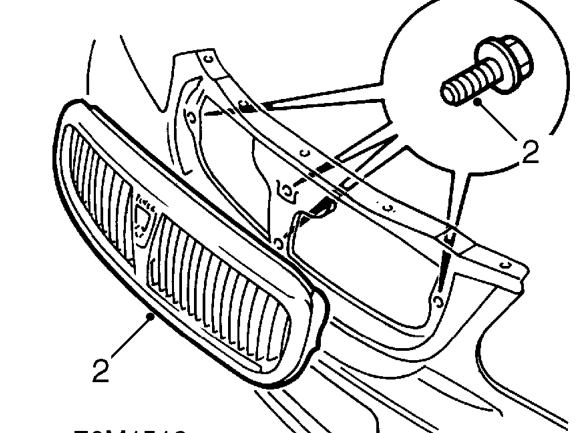

Front grille – Remove front bumper valance. See this section.
  1. Remove 4 screws and remove grille.

Refit

  1. Fit grille and secure with screws.
  2. Refit front bumper valance. See this section.

REAR BUMPER

Service repair no - 76.22.15

Remove

  1. Open tailgate.

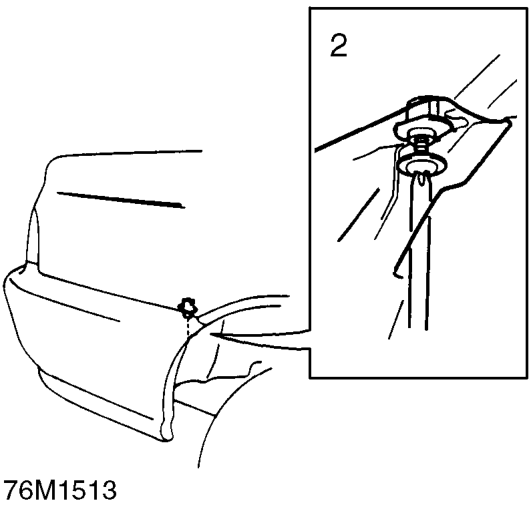

Rear bumper – Open tailgate.
  1. Remove 2 screws, bumper ends to body.

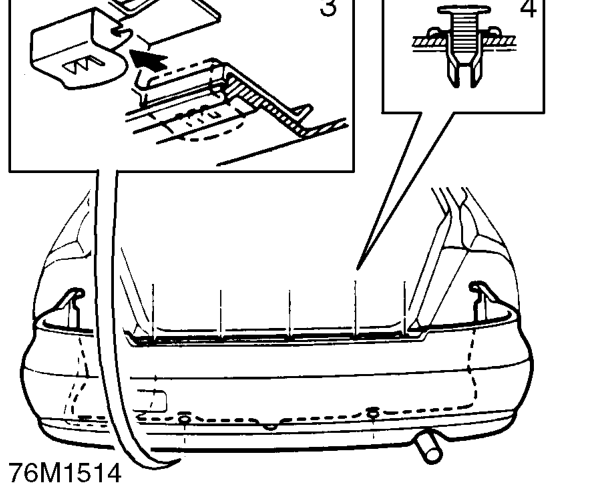

Rear bumper – Remove 2 screws, bumper ends to body.
  1. Remove 3 clips bumper to rear under cover.
  2. Slacken 7 screws and remove scrivets securing bumper to body.
  3. Using assistance remove rear bumper.
