Front bumper (page 2 of 2)

Do not carry out further dismantling if component is removed for access only.

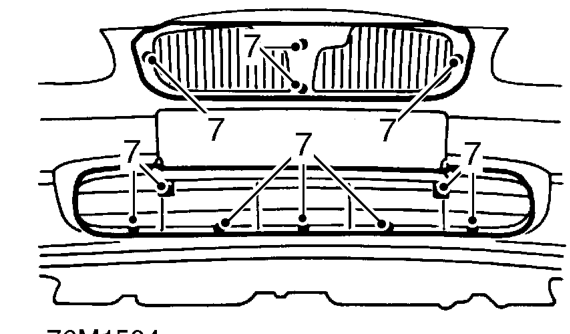

7. Remove 11 screws and remove air intake grilles from bumper.

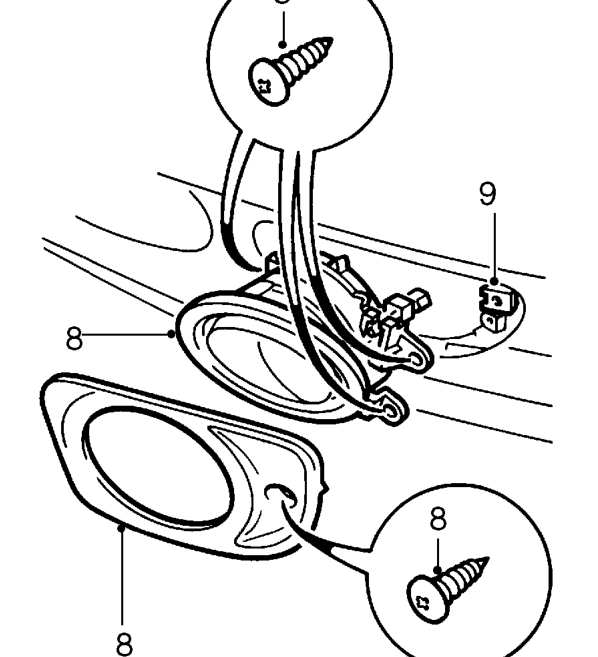

8. Remove screws securing fog lamp trims and fog lamps to bumper, remove lamps.
9. Remove spring nuts from bumper.

Refit

1. Fit spring nuts to bumper.
2. Fit fog lamps and trims to bumper and tighten screws.
3. Fit air intakes to bumper and tighten screws.
4. Using assistance, position bumper assembly and connect fog lamp multiplugs.
5. Fit screws securing bumper to bonnet platform and cross member, tighten to 9 Nm.
6. Fit screws bumper to front wings.
7. Position wheel arch liners and fit screws and scrivets.
8. Remove stand(s) and lower vehicle.
