BodyFront wheel arch liner

FRONT WHEEL ARCH LINER

Service repair no - 76.10.48

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

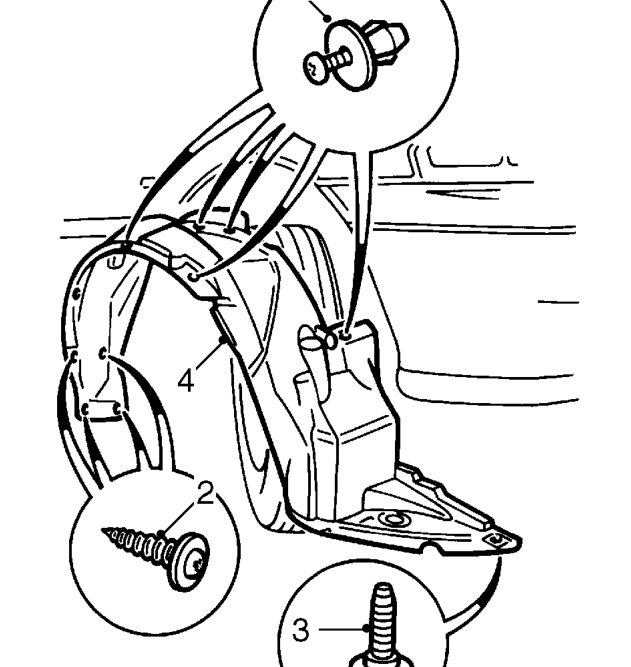

Front wheel arch liner – Raise front of vehicle, one side.
  1. Remove 4 screws securing wheel arch liner to rear of wheel arch.
  2. Remove bolt securing wheel arch liner to bumper valance.
  3. Remove 6 scrivets and remove wheel arch liner.

Refit

  1. Position wheel arch liner and align to bumper valance.
  2. Secure wheel arch liner with scrivets and screws.
  3. Fit bolt to secure wheel arch liner to bumper valance.

CAUTION: Renew any scrivets showing signs of damage.

  1. Remove stand(s) and lower vehicle.
