Boot compartment lamp - 4 door

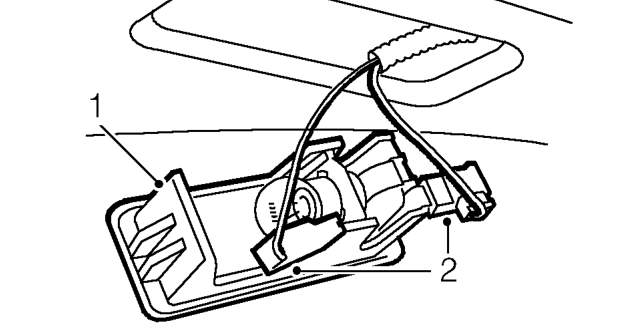

BOOT COMPARTMENT LAMP - 4 DOOR

Service repair no - 86.45.16

Remove

1. Release lamp from top of boot compartment.
2. Noting their fitted positions disconnect 2 Lucars from lamp.
3. Remove lamp.

Refit

1. Position lamp to boot compartment and connect Lucars.
2. Secure lamp to housing.

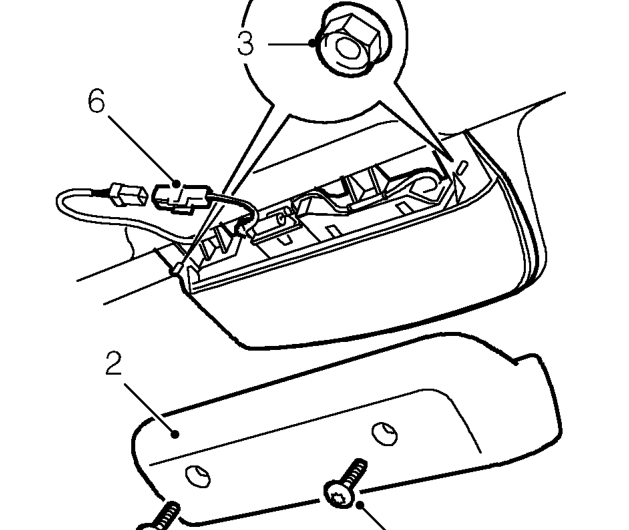

CENTRE HIGH MOUNTED STOP LAMP - 4 DOOR

Service repair no - 86.41.32

Remove

1. Remove 2 Torx screws securing CHMSL trim.
2. Remove trim.
3. Remove 2 nuts securing CHMSL to rear screen fixings.
4. Release CHMSL from fixings.
5. Release multiplug fixing from CHMSL.
6. Disconnect multiplug and remove CHMSL.

Refit

1. Position CHMSL and connect multiplug.
2. Secure multiplug fixing to CHMSL.
3. Position CHMSL to rear screen fixings, fit nuts and tighten to 2 Nm.
4. Position trim and secure with Torx screws.
