Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Radio

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Radio
ElectricalRadio

RADIO

Service repair no - 86.50.03

Remove

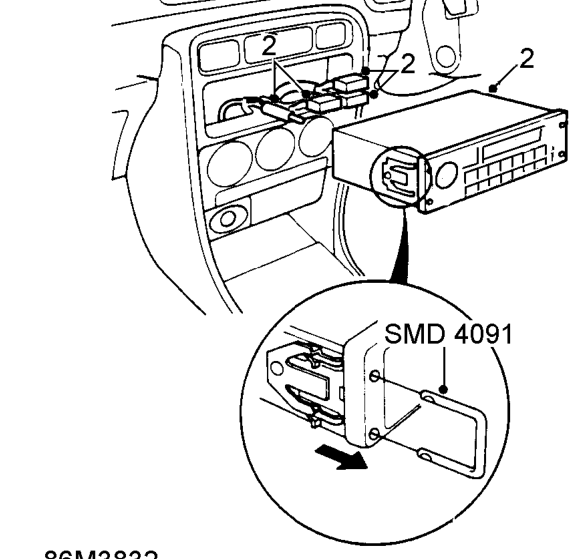

Radio – Service repair no - 86.50.03
  1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tool to release radio from fascia.
  2. Disconnect multiplugs and aerial lead. remove radio.
  3. Remove tools from radio.

Refit

  1. Position radio to aperture. Connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.

RADIO SPEAKER - FRONT

Service repair no - 86.50.15

Remove

  1. Remove front door trim casing. See BODY, Doors.

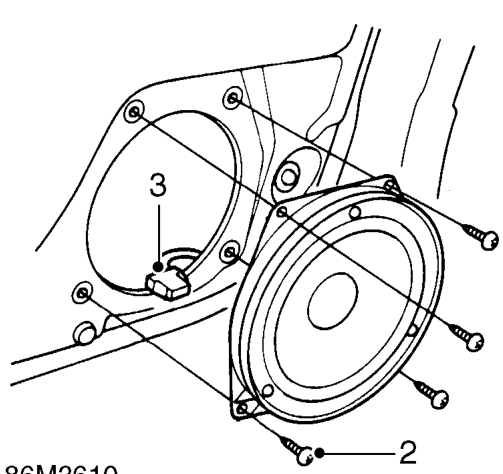

Radio speaker - front – Remove front door trim casing. See BODY, Doors.
  1. Remove 4 screws securing speaker to door.
  2. Disconnect speaker multiplug and remove speaker.

Refit

  1. Position speaker and connect multiplug.
  2. Tighten screws securing speaker.
  3. Refit front door trim casing. See BODY, Doors.
