Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Remote i.c.e. controls

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Remote i.c.e. controls
ElectricalRemote i.c.e. controls

REMOTE I.C.E. CONTROLS

Service repair no - 86.50.13

Remove

WARNING: SRS procedures must be followed and aLL precautions observed.

  1. Disconnect battery earth lead.
  2. Remove drivers airbag module. See RESTRAINT SYSTEMS, Repairs.

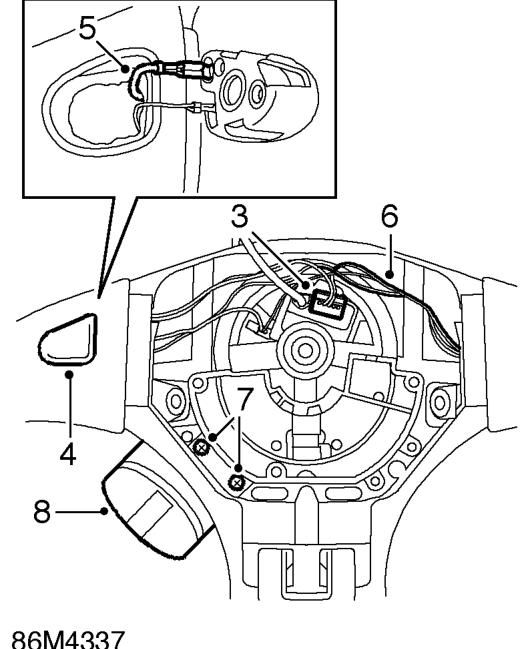

Remote i.c.e. controls – Remove drivers airbag module. See RESTRAINT SYSTEMS, Repairs.
  1. Disconnect multiplug from rotary coupler.
  2. Release both horn switches from steering wheel.
  3. Disconnect the RED lead from both horn switches.
  4. Release harness from steering wheel.
  5. Remove 2 screws securing remote control to steering wheel.
  6. Remove remote control.

Refit

  1. Fit remote control to steering wheel.
  2. Position remote control and secure with screws.
  3. Position harness in steering wheel.
  4. Connect leads to horn switches.
  5. Secure horn switches to steering wheel.
  6. Connect multiplug to rotary coupler.
  7. Fit drivers airbag module. See RESTRAINT SYSTEMS, Repairs.
  8. Connect battery earth lead.
