Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Boot compartment lamp

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Boot compartment lamp
ElectricalBoot compartment lamp

BOOT COMPARTMENT LAMP

Service repair no - 86.45.16

Remove

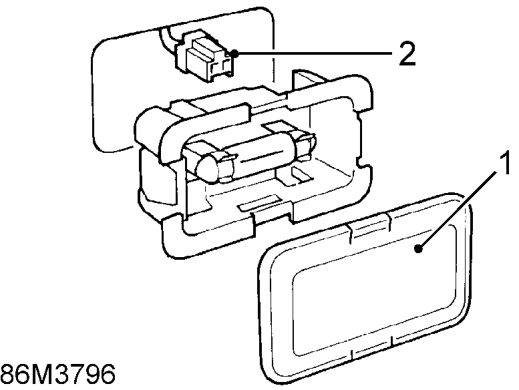

Boot compartment lamp – Service repair no - 86.45.16
  1. Remove lens from lamp and release lamp from body panel.
  2. Disconnect multiplug and remove lamp.

Refit

  1. Connect multiplug to new lamp and fit lamp assembly to body panel.

GEAR SELECTOR LAMP BULB

Service repair no - 86.45.40

Remove

  1. Remove front console. See BODY, Interior trim components.

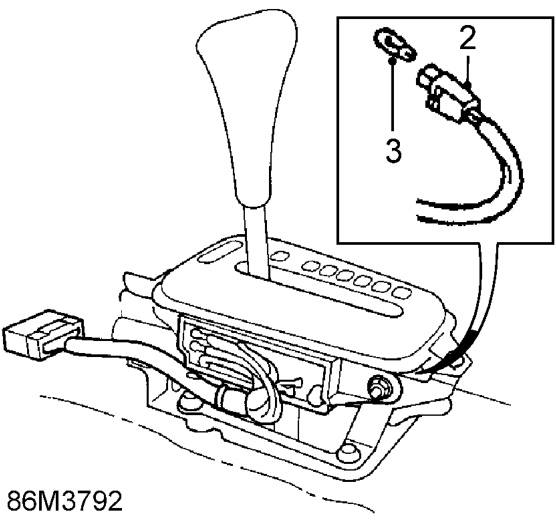

Gear selector lamp bulb – Remove front console. See BODY, Interior trim components.
  1. Release bulb holder from selector housing.
  2. Remove bulb.

Refit

  1. Fit bulb and secure holder to selector housing.
  2. Fit front console. See BODY, Interior trim components.
