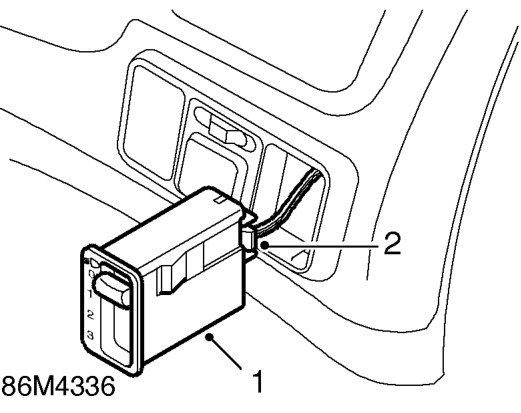

Switch - headlamp levelling

SWITCH - HEADLAMP LEVELLING

Service repair no - 86.65.16

Remove

1. Release switch from fascia.
2. Disconnect multiplug from switch.
3. Remove switch.

Refit

1. Position switch, connect multiplug and secure switch to fascia.

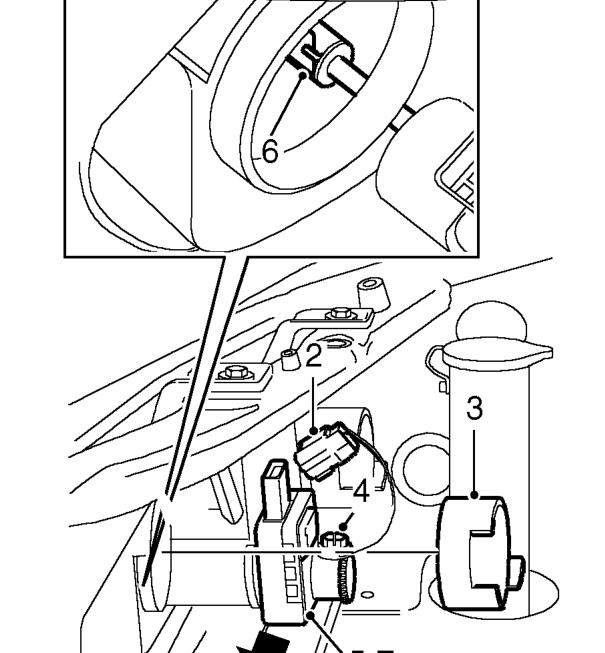

MOTOR - HEADLAMP LEVELLING

Service repair no - 86.41.44

Remove

1. LH headlamp motor: Remove battery. See this section.

2. Disconnect multiplug from headlamp levelling motor.
3. Remove bulb access cover from rear of headlamp to enable a view into lamp.
4. Rotate headlamp adjuster screw anti-clockwise to fully extend motor link rod.
5. Rotate motor approximately 45° and release from headlamp body.
6. Release link rod ball end from headlamp reflector socket.
7. Remove motor.

Refit

1. Rotate adjuster screw anti-clockwise to fully extend link rod of new motor.
2. Connect link rod ball end to socket in lamp reflector, locate and rotate motor to secure to lamp body.
3. Fit bulb access cover.
4. Connect multiplug to motor.
5. LH headlamp motor: Fit battery. See this section.
6. Check headlamp alignment, adjust if necessary. See Adjustments.
