Auxiliary drive belt - ’l’ series

AUXILIARY DRIVE BELT - ’L’ SERIES

Service repair no - 86.10.03

Remove

1. Remove underbelly panel. See BODY, Exterior fittings.

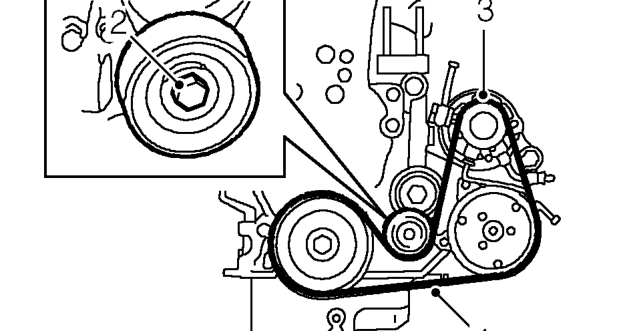

2. Using a 15 mm ring spanner on drive belt tensioner pulley bolt, rotate pulley fully clockwise and hold.
3. With assistance, release drive belt from alternator pulley.
4. Remove drive belt from remaining pulleys and remove from vehicle.

Refit

1. Clean drive belt pulley grooves and ensure grooves are not damaged.
2. Fit new drive belt around pulleys, except alternator pulley, ensure belt is correctly aligned in pulley grooves.
3. Hold tensioner pulley fully clockwise, with assistance fit drive belt around alternator pulley.
4. Fit underbelly panel. See BODY, Exterior fittings.

DRIVE BELT TENSIONER - ’L’ SERIES

Service repair no - 86.10.06

Remove

1. Remove auxiliary drive belt, See this section.

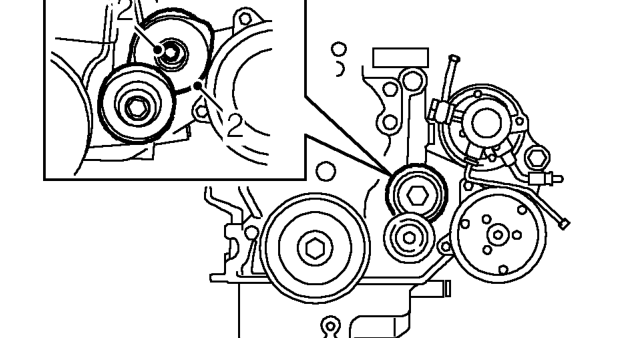

2. Remove bolt and remove drive belt tensioner.

Refit

1. Clean tensioner and mating face.
2. Fit tensioner locate with dowel and tighten retaining bolt to 45 Nm.
3. Fit drive belt, See this section.
