Radio speaker rear - 4 door

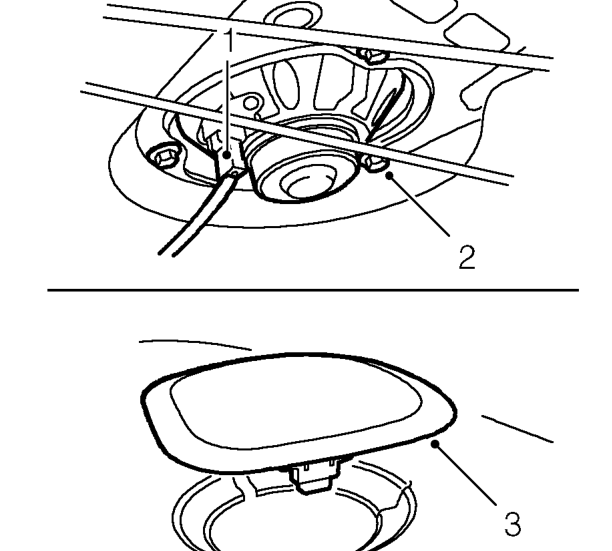

RADIO SPEAKER REAR - 4 DOOR

Service repair no - 86.50.12

Remove

1. Disconnect multiplug from speaker.
2. Remove 3 nuts securing speaker to parcel tray.
3. Remove speaker.

Refit

1. Position speaker to parcel tray, fit nuts and tighten.
2. Connect multiplug to speaker.

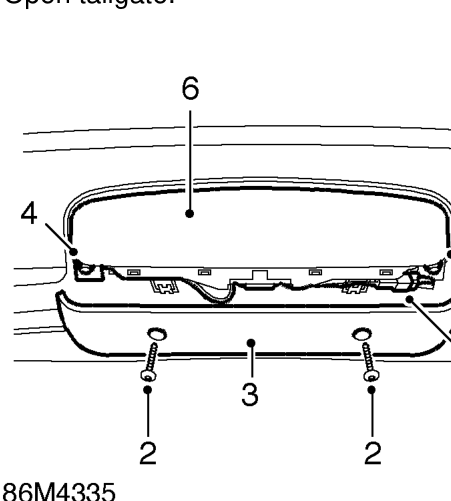

CENTRE HIGH MOUNTED STOP LAMP - 5 DOOR

Service repair no - 86.41.32

Remove

1. Open tailgate.

2. Remove 2 screws securing CHMSL trim.
3. Remove trim.
4. Remove 2 nuts securing CHMSL to rear screen.
5. Disconnect CHMSL multiplug.
6. Remove CHMSL.

Refit

1. Position CHMSL, connect multiplug and fit to rear screen studs.
2. Fit nuts securing CHMSL to rear screen and tighten to 2 Nm.
3. Fit CHMSL trim and secure with screws.
