Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Side repeater lamp

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Side repeater lamp
ElectricalSide repeater lamp

SIDE REPEATER LAMP

Service repair no - 86.40.53

Remove

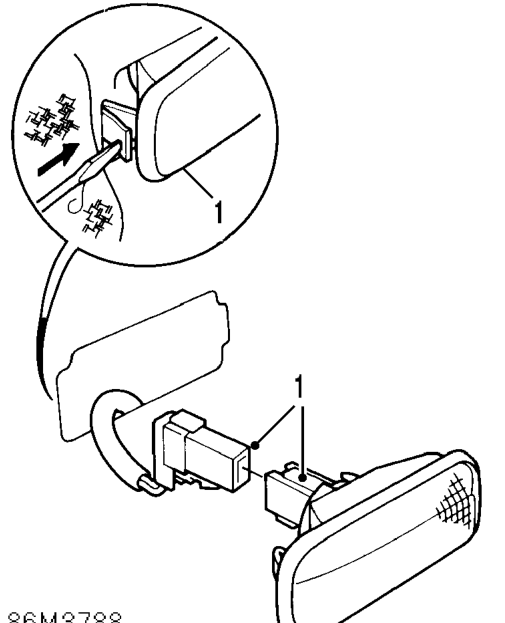

Side repeater lamp – Service repair no - 86.40.53
  1. Release lamp from wing and disconnect multiplug.

Refit

  1. Connect multiplug to new lamp and secure lamp to wing.

TAIL LAMP - 5 DOOR

Service repair no - 86.40.70

Remove

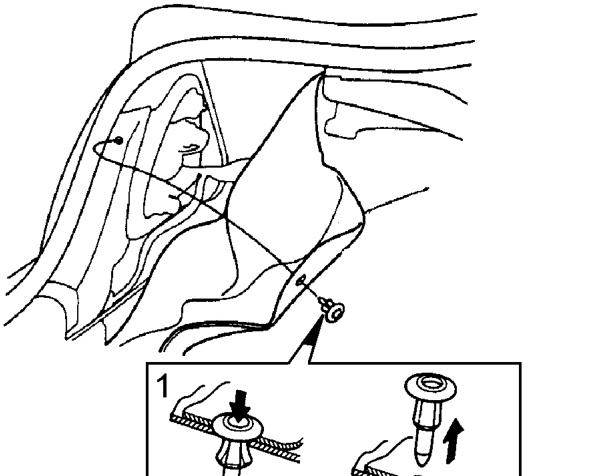

Tail lamp - 5 door – Service repair no - 86.40.70
  1. Depress plunger and remove stud from boot side carpet. Release carpet.
Tail lamp - 5 door – Depress plunger and remove stud from boot side carpet. Release carpet.

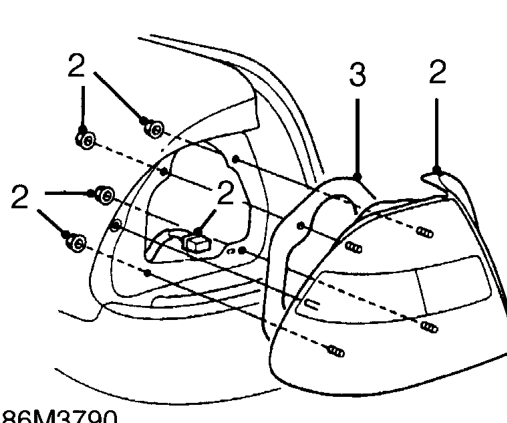

  1. Disconnect multiplug from tail lamp and remove 4 nuts securing lamp. Remove lamp.
  2. Remove lamp sealing rubber.

Refit

  1. Fit sealing rubber to lamp.
  2. Position lamp to body. Fit and tighten securing nuts.
  3. Connect multiplug to tail lamp.
  4. Position side carpet and fit securing stud.
