Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Battery - ’k’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Battery - ’k’ series
ElectricalBattery - ’k’ series

BATTERY - ’K’ SERIES

Service repair no - 86.15.01

Remove

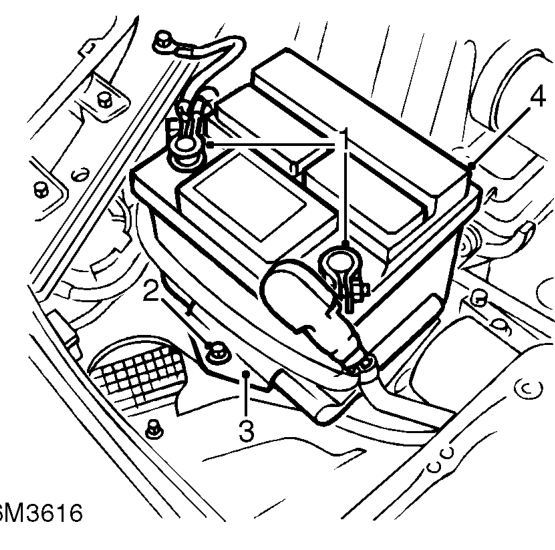

Battery - ’k’ series – Service repair no - 86.15.01
  1. Disconnect both battery leads, earth lead first.
  2. Remove bolt securing battery clamp to battery tray.
  3. Remove battery clamp.
  4. Release and remove battery from vehicle.

Refit

  1. Clean battery terminals and coat with petroleum jelly.
  2. Position battery to battery tray.
  3. Fit battery clamp and secure with bolt.
  4. Position and connect battery leads, earth lead last.

BATTERY - ’D’ SERIES

Service repair no - 86.15.01

Remove

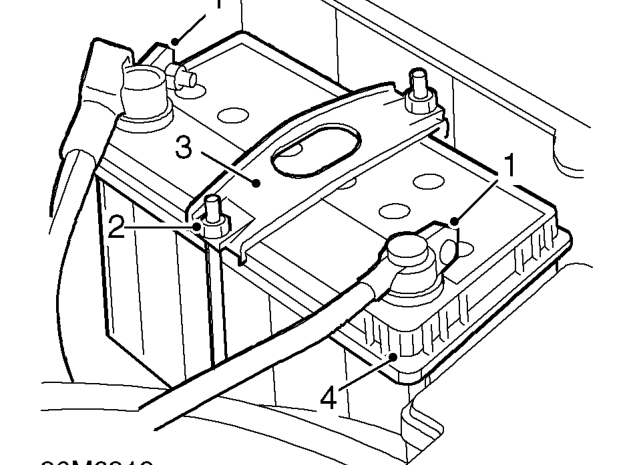

Battery - ’d’ series – Service repair no - 86.15.01
  1. Disconnect both battery leads, earth lead first.
  2. Loosen 2 nuts securing battery clamp to battery tray.
  3. Remove battery clamp.
  4. Release and remove battery from vehicle.

Refit

  1. Clean battery terminals and coat with petroleum jelly.
  2. Position battery to battery tray.
  3. Fit battery clamp and secure with nuts.
  4. Position and connect battery leads, earth lead last.
