Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Tail lamp - 4 door

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Tail lamp - 4 door
ElectricalTail lamp - 4 door

TAIL LAMP - 4 DOOR

Service repair no - 86.40.70

Remove

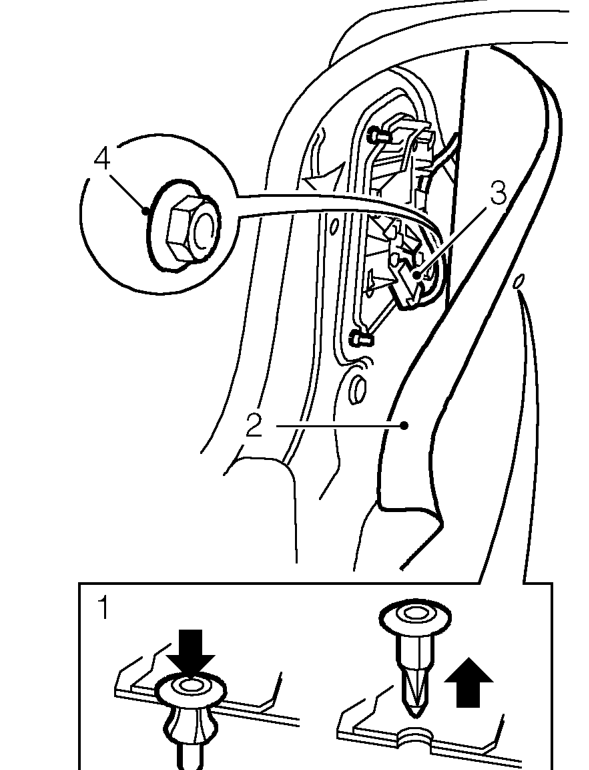

Tail lamp - 4 door – Service repair no - 86.40.70
  1. Depress plunger and remove stud securing boot side carpet.
  2. Release carpet to access tail lamp.
  3. Disconnect multiplug from tail lamp.
  4. Remove 3 nuts securing lamp.

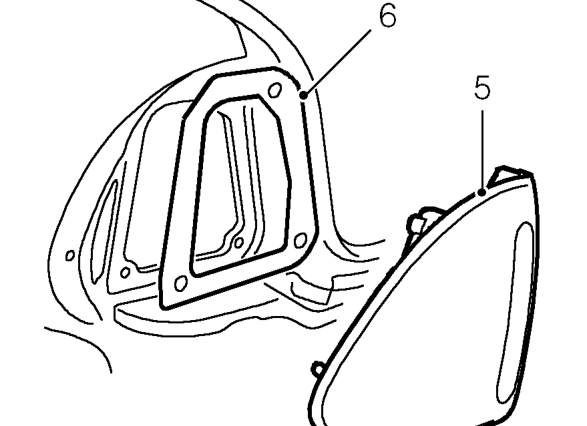

Tail lamp - 4 door – Remove 3 nuts securing lamp.
  1. Remove tail lamp.
  2. Remove lamp sealing rubber.

Refit

  1. Fit sealing rubber to lamp.
  2. Position lamp to body, fit nuts and tighten.
  3. Connect tail lamp multiplug.
  4. Position side carpet and securing with fixing stud.
