8. Release vacuum hose from cruise control vacuum control unit and remove battery tray mounting bracket assembly.
9. Drill out 2 pop rivets securing dim dip resistor to underside of battery tray mounting bracket.
10. Remove dim dip resistor.

Refit

1. Position dim dip resistor to battery tray mounting bracket and secure with pop rivets.
2. Position battery tray mounting bracket and connect vacuum hose to cruise control vacuum control unit.
3. Connect multiplugs to dim dip resistor and cruise control vacuum control unit.
4. Position battery tray mounting bracket to fixings, do not tighten at this stage.
5. Position air intake hose to battery tray mounting bracket and secure with bolt.
6. Position battery tray to mounting bracket.
7. Fit bolts and nut securing battery tray to mounting bracket and engine LH mounting.
8. Tighten 2 bolts securing battery tray mounting bracket to body 9 Nm.
9. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

STARTER MOTOR - ’T’ SERIES

Service repair no - 86.60.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
3. Release evaporative emissions charcoal canister from mounting bracket and position aside.

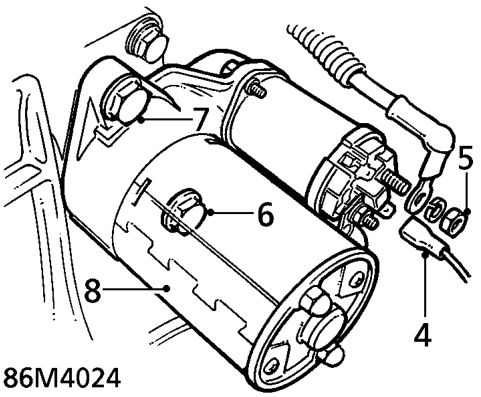

4. Disconnect Lucar from starter solenoid.
5. Remove nut securing battery cable to starter solenoid; release lead from stud.
6. Using assistance, remove nut and washer from lower bolt securing starter motor; withdraw bolt.
7. Remove upper bolt securing starter motor.
8. Release and remove starter motor.
