ALTERNATOR - ’D’ SERIES

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.
  3. Remove alternator drive belt. See this section.
Alternator - ’d’ series – Remove alternator drive belt. See this section.

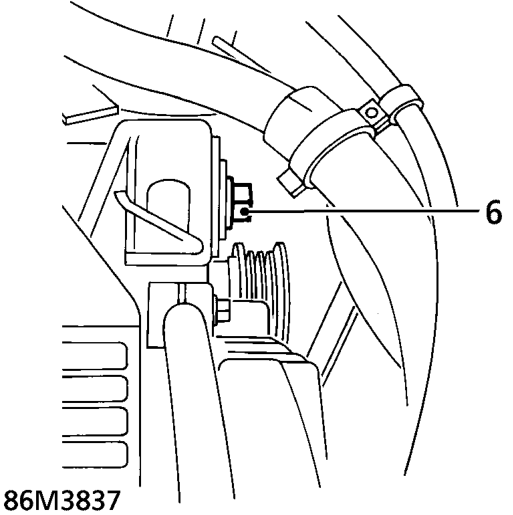

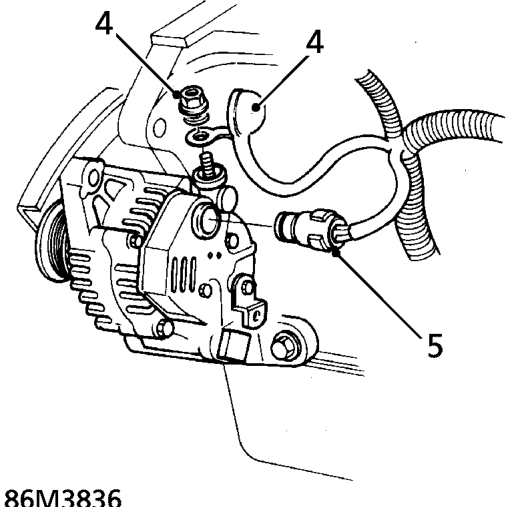

  1. Release cover and remove nut securing lead to alternator.
  2. Disconnect multiplug from alternator.
Alternator - ’d’ series – Disconnect multiplug from alternator.

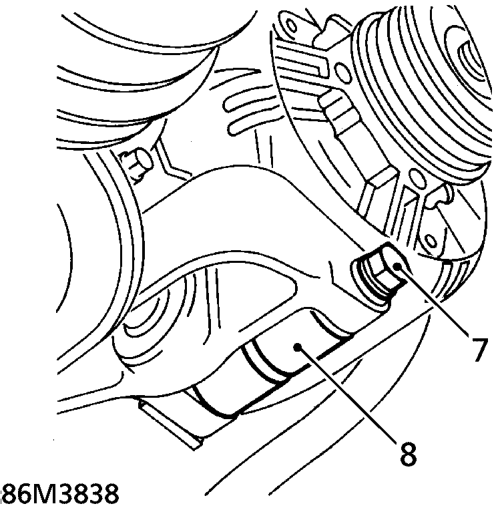

  1. Remove bolt securing alternator to adjustment bracket.
Alternator - ’d’ series – Remove bolt securing alternator to adjustment bracket.
  1. Remove nut from alternator lower mounting bolt and remove bolt.
  2. Move alternator aside for access to lower mounting bracket bolts.
Alternator - ’d’ series – Move alternator aside for access to lower mounting bracket bolts.

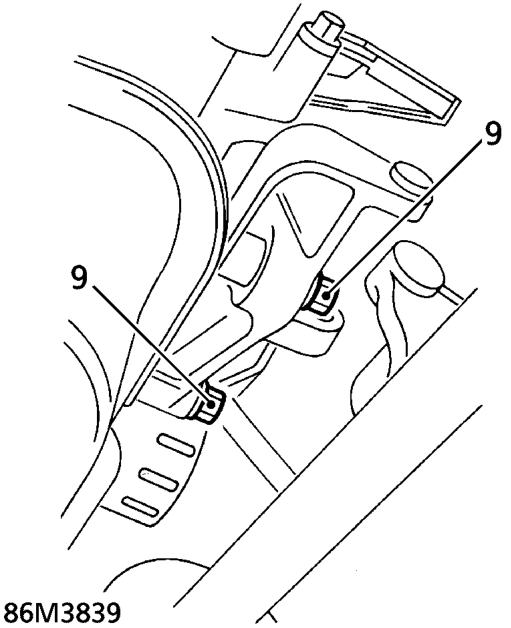

  1. Remove 2 bolts securing lower mounting bracket. Remove alternator and bracket. Do not carry out further dismantling if component is removed for access only.
  2. Restrain alternator shaft with a 10 mm 12 point spline bit and remove nut securing pulley to alternator shaft using tool 18G 1653 .
  3. Remove pulley from alternator.
  4. Clean pulley and alternator shaft.
  5. Fit pulley to new alternator.
  6. Fit alternator pulley nut, and tighten to 25 Nm.
