BATTERY - ’L’ SERIES

Service repair no - 86.15.01

Remove

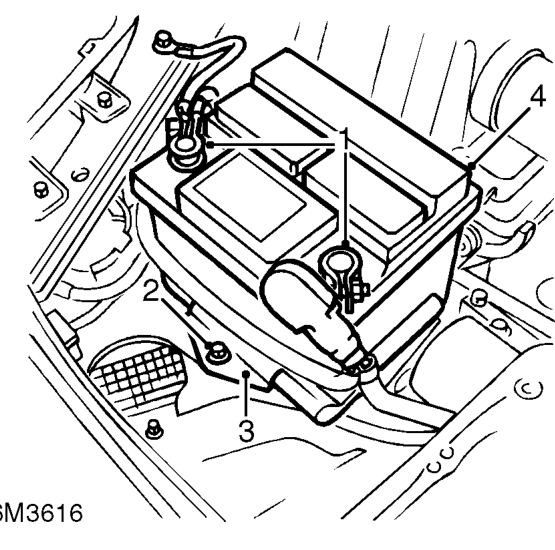

  1. Disconnect both battery leads, earth lead first.

CAUTION: Ensure ECU casing does not make contact with the battery positive terminal, as this will cause ECU failure.

Battery - ’l’ series – Disconnect both battery leads, earth lead first.
  1. Remove bolt securing battery clamp to battery tray.
  2. Remove battery clamp.
  3. Release and remove battery from vehicle.

Refit

  1. Clean battery terminals and coat with petroleum jelly.
  2. Position battery to battery tray.
  3. Fit battery clamp and secure with bolt.
  4. Position and connect battery leads, earth lead last

DIM DIP RESISTOR - ’L’ SERIES

Service repair no - 86.55.92

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Dim dip resistor - ’l’ series – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

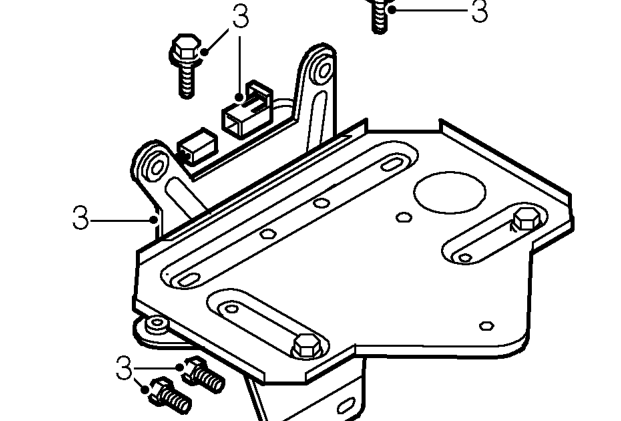

  1. Remove 4 bolts and release air cleaner support bracket. Disconnect multiplug from dim dip resistor and remove support bracket and resistor assembly.
Dim dip resistor - ’l’ series – Remove 4 bolts and release air cleaner support bracket. Disconnect multiplug from dim dip

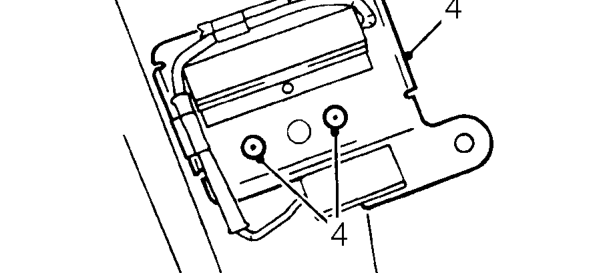

  1. Hold support bracket in a vice, drill out 2 pop rivets and remove resistor.
