Starter solenoid - ’k’ series

Refit

1. Clean starter motor and mating faces on flywheel housing.
2. Fit and align starter motor to engine.
3. Fit 2 bolts securing starter motor and tighten to 45 Nm.
4. Connect Lucar to starter solenoid and fit cover.
5. Connect battery cable to starter solenoid and tighten nut to 9 Nm.
6. Fit rubber cover over nut.
7. Align engine harness clip to bracket on starter and fit and tighten bolt.
8. Fit air intake hose to throttle housing and air cleaner.
9. Tighten hose clip.
10. Connect engine breather pipe to intake hose and secure with clip.
11. Connect battery earth lead.

STARTER SOLENOID - ’K’ SERIES

Service repair no - 86.60.08

Remove

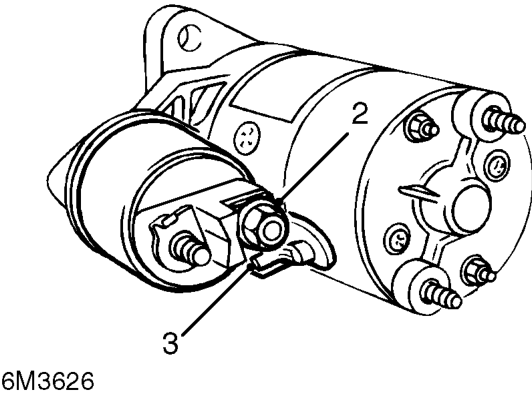

1. Remove starter motor.

2. Remove nut securing starter motor cable to solenoid.

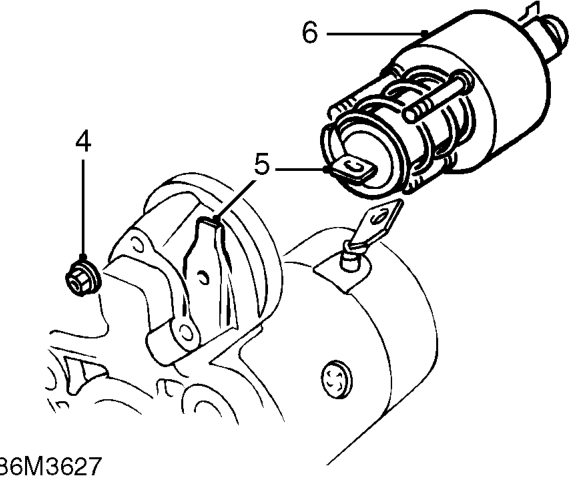

3. Disconnect starter motor cable from starter solenoid.

4. Remove 3 nuts securing starter solenoid to starter motor.
5. Release solenoid operating plunger from starter lever.
6. Remove starter solenoid.
