Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Radio speaker - rear - 5 door

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Radio speaker - rear - 5 door
ElectricalRadio speaker - rear - 5 door

RADIO SPEAKER - REAR - 5 DOOR

Service repair no - 86.50.12

Remove

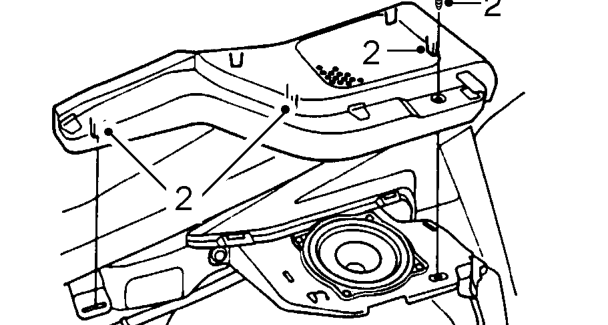

  1. Release support straps and remove rear parcel shelf.
Radio speaker - rear - 5 door – Release support straps and remove rear parcel shelf.
  1. Remove screw, release 3 clips and remove parcel tray support.
Radio speaker - rear - 5 door – Remove screw, release 3 clips and remove parcel tray support.

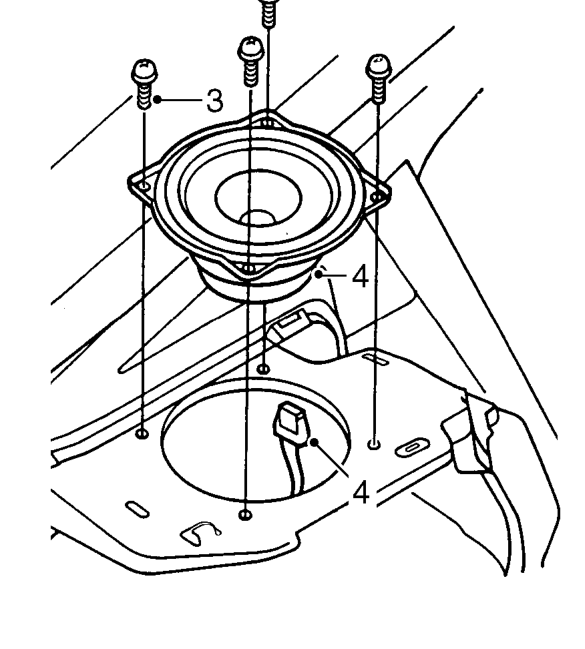

  1. Remove 4 screws and release speaker from mounting.
  2. Disconnect multiplug and remove speaker.

Refit

  1. Position speaker, connect multiplug and tighten screws.
  2. Fit parcel tray support, secure clips and tighten screw.
  3. Refit parcel tray and secure support straps.
