WINDOW MASTER SWITCH

Service repair no - 86.25.08

Remove

  1. Remove rear console. See BODY, Interior trim components.

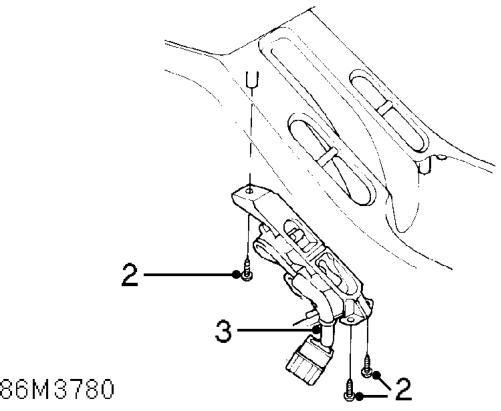

Window master switch – Remove rear console. See BODY, Interior trim components.
  1. Remove 3 screws and remove switch assembly.
  2. Remove cable strap securing switch harness.

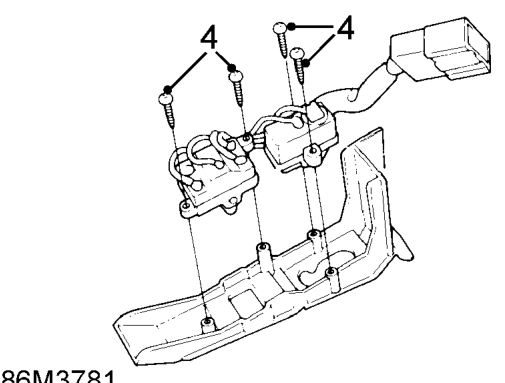

Window master switch – Remove cable strap securing switch harness.
  1. Remove 4 screws and remove switches from panel.

Refit

  1. Fit switches to panel and secure with screws.
  2. Secure switch harness to panel with cable strap.
  3. Fit switch assembly and secure with screws.
  4. Fit rear console. See BODY, Interior trim components.

WINDOW LIFT CONTROL UNIT

Service repair no - 86.25.39

Remove

  1. Remove front door trim casing. See BODY, Doors.
  2. Pull back top left hand corner of plastic sheet for access to control unit.

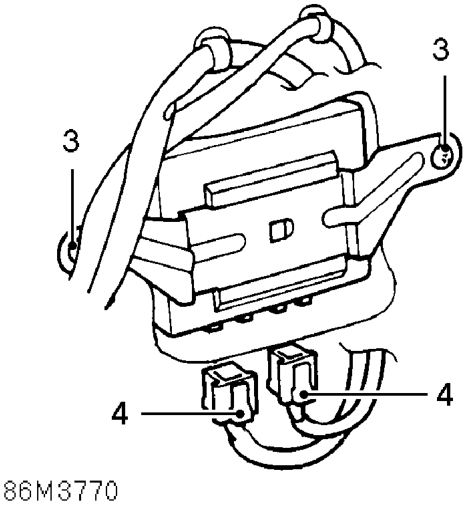

Window lift control unit – Pull back top left hand corner of plastic sheet for access to control unit.
  1. Remove 2 screws securing control unit to door.
  2. Disconnect 2 multiplugs and remove control unit.

Refit

  1. Position control unit and connect multiplugs.
  2. Fit and tighten screws securing control unit.
  3. Secure plastic sheet.
  4. Fit door trim casing. See BODY, Doors.
