Alarm sounder

ALARM SOUNDER

Service repair no - 86.77.10

Remove

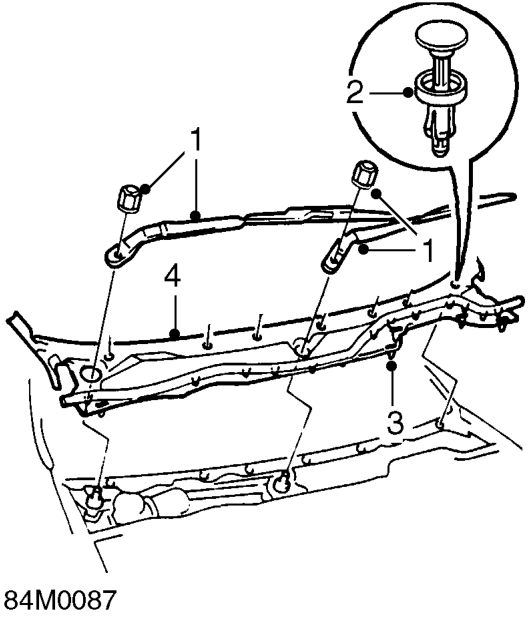

1. Remove 2 wiper spindle nuts and remove both wiper arms and blades.
2. Remove 7 studs securing upper edge of plenum air intake.
3. Release 9 studs securing lower edge of plenum air intake.

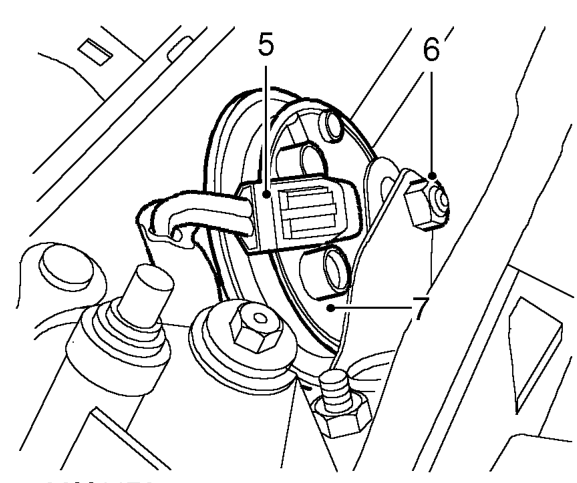

4. Release plenum air intake from bonnet hinges and ’A’ post finishers. Remove plenum air intake.

5. Disconnect multiplug from sounder.
6. Remove nut securing sounder to bracket.
7. Remove sounder.

Refit

1. Position sounder to bracket, fit and tighten nut.
2. Connect multiplug.
3. Fit plenum air intake and secure with 9 studs to lower edge and 7 studs to upper edge.

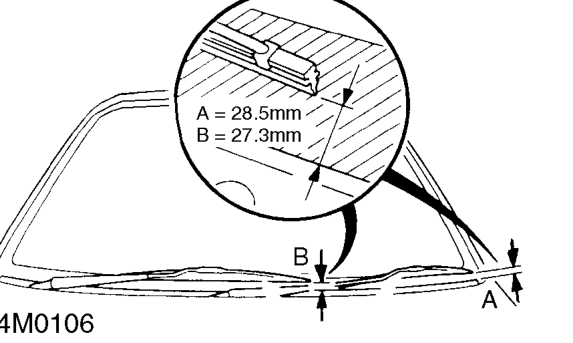

4. Fit wiper arms. Set blades to, dimension ’A’ 28.5 mm and dimension ’B’ to 27.3 mm, then tighten nuts to 18 Nm.
