Starter solenoid - ’t’ series

Refit

1. Clean starter motor and transmission housing mating faces.
2. Manoeuvre starter into position, fit upper retaining bolt but do not tighten.
3. Fit lower bolt securing starter motor; fit washer and nut and using assistance tighten bolt to 85 Nm.
4. Tighten upper bolt to 85 Nm.
5. Connect battery cable to starter solenoid; fit nut and tighten to 4 Nm.
6. Connect Lucar to starter solenoid.
7. Align evaporative emissions charcoal canister to mounting bracket and secure.
8. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
9. Remove stand(s) and lower vehicle.

STARTER SOLENOID - ’T’ SERIES

Service repair no - 86.60.08

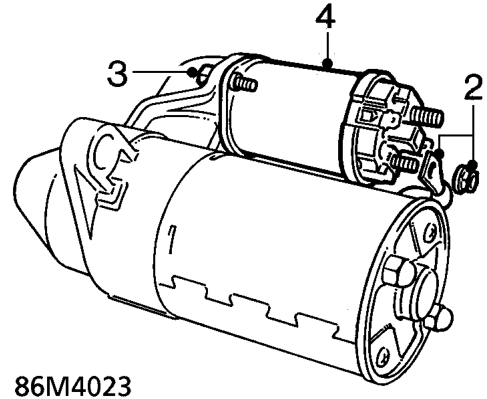

Remove

1. Remove starter motor. See this section.

2. Remove nut securing starter lead to solenoid; release lead from stud.
3. Remove 2 screws securing solenoid to starter motor.
4. Release solenoid from drive assembly lever; remove solenoid.

Refit

1. Engage solenoid plunger with drive assembly lever, position solenoid to starter motor; fit and tighten screws.
2. Connect lead to starter solenoid; fit nut and tighten to 4 Nm.
3. Fit starter motor. See this section.
