Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Backlight heater switch

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Backlight heater switch
ElectricalBacklight heater switch

BACKLIGHT HEATER SWITCH

Service repair no - 86.65.36

Remove

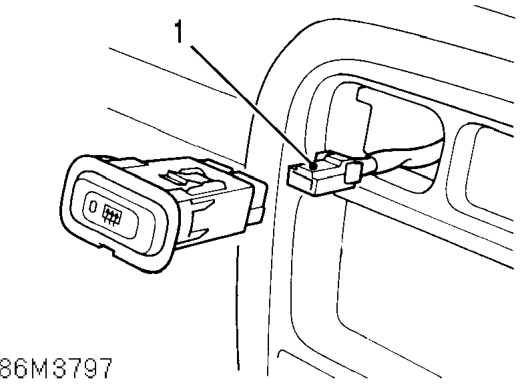

Backlight heater switch – Service repair no - 86.65.36
  1. Release switch from front console and disconnect multiplug.

Refit

  1. Position switch, connect multiplug and secure switch to console.

LIGHTING SWITCH

Service repair no - 86.65.55

Remove

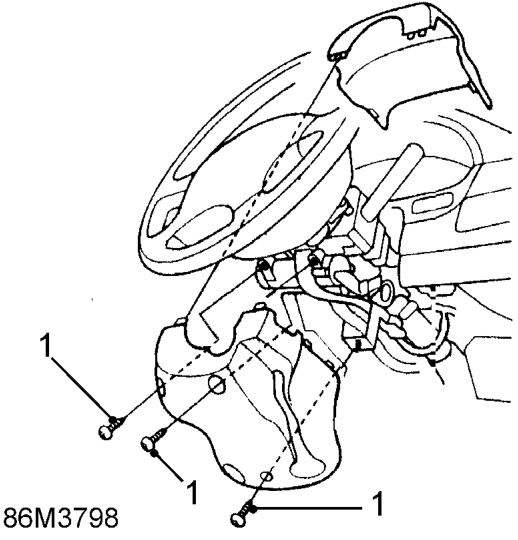

Lighting switch – Service repair no - 86.65.55
  1. Remove 3 screws, then carefully separate and remove upper and lower sections of column nacelle.

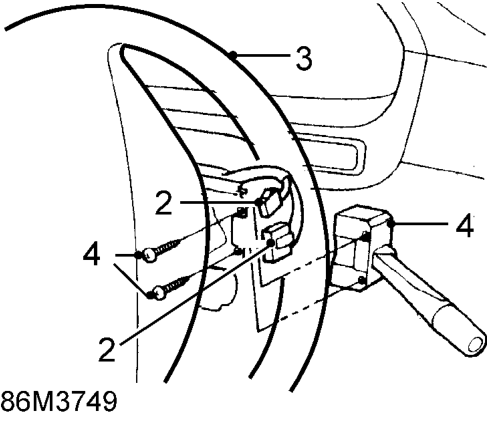

Lighting switch – Remove 3 screws, then carefully separate and remove upper and lower sections of column nac
  1. Disconnect 2 multiplugs from lighting switch.
  2. Rotate steering wheel for access to switch securing screws.
  3. Remove 2 screws, depress retaining tag and remove lighting switch.

Refit

  1. Fit lighting switch and secure with screws.
  2. Connect multiplugs to switch.
  3. Fit upper and lower sections of nacelle and secure with screws.
