CD PLAYER

Service repair no - 86.50.81

Remove

  1. Disconnect battery earth lead.

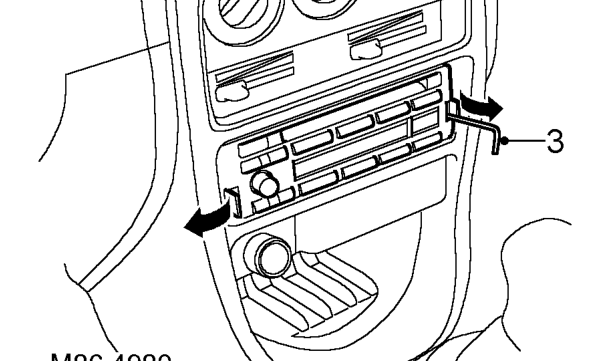

Cd player – Disconnect battery earth lead.
  1. Release access tab from each side of unit.
  2. Using a 2.5 mm Allen key, slacken 2 captive screws securing unit.

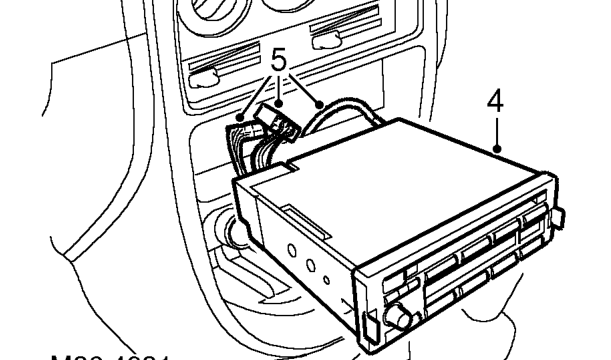

Cd player – Using a 2.5 mm Allen key, slacken 2 captive screws securing unit.
  1. Withdraw unit sufficiently to gain access to multiplugs and aerial lead.

CAUTION: Take care not to damage face of unit.

  1. Noting their fitted positions, disconnect 2 multiplugs and aerial lead plug; remove unit.

Refit

  1. Position unit, connect 2 multiplugs and aerial lead plug.
  2. Fit unit, tighten 2 captive screws.
  3. Secure access tab to each side of unit.
  4. Connect battery earth lead.
  5. Enter security code and check unit for correct operation.
