ALTERNATOR - ’T’ SERIES WITHOUT AIR CONDITIONING

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Remove drive belt. See this section.

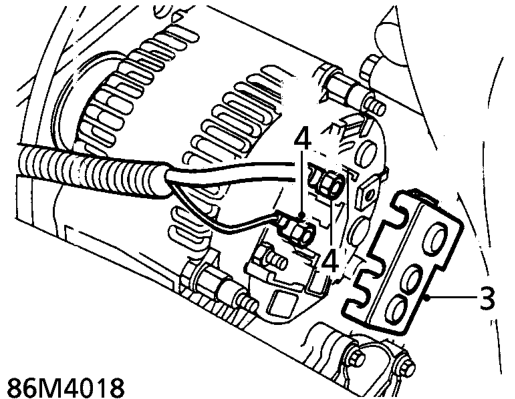

Alternator - ’t’ series without air conditioning – Remove drive belt. See this section.
  1. Remove alternator terminal cover.
  2. Remove 2 nuts securing cables to alternator and release cables.

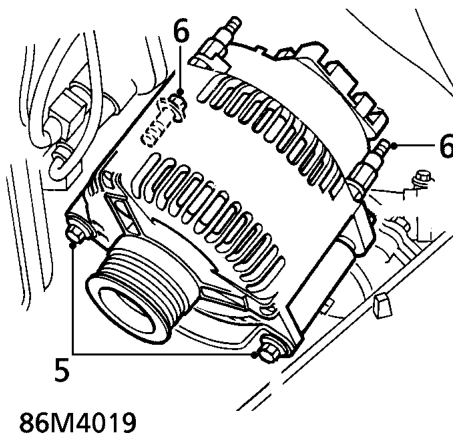

Alternator - ’t’ series without air conditioning – Remove 2 nuts securing cables to alternator and release cables.
  1. Remove 2 front bolts securing alternator to mounting bracket.
  2. Remove 2 rear bolts securing alternator to mounting bracket.

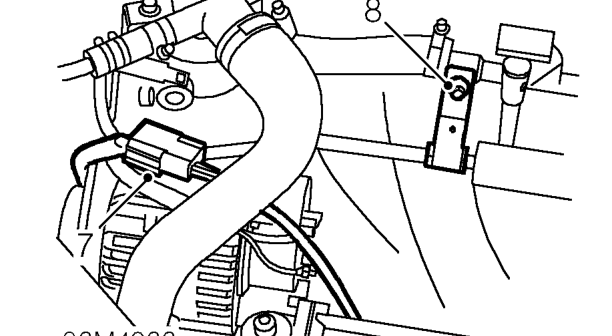

Alternator - ’t’ series without air conditioning – Remove 2 rear bolts securing alternator to mounting bracket.
  1. Release heated oxygen sensor multiplug from clip and disconnect multiplug.
  2. Remove screw securing PAS pipe support bracket to engine coolant rail.

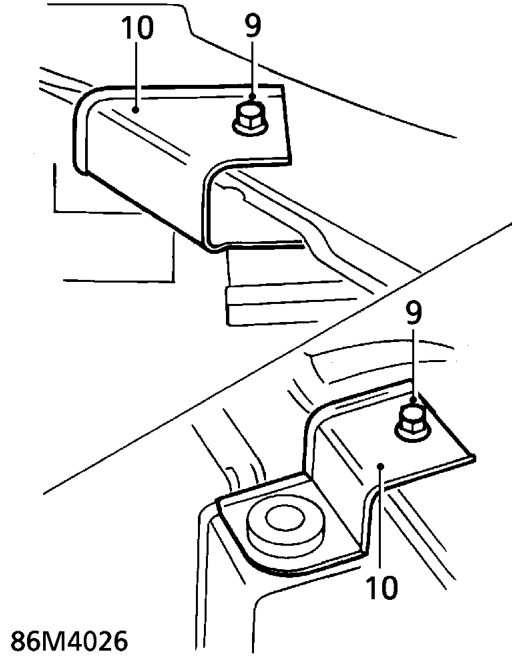

Alternator - ’t’ series without air conditioning – Remove screw securing PAS pipe support bracket to engine coolant rail.
  1. Remove 2 bolts securing radiator top mounting brackets to bonnet locking panel.
  2. Remove mounting brackets from radiator.
  3. Remove alternator.
