Rover 400 Workshop Manual (1995-2000)30 · Electrical
30 · Electrical

Rear fog lamp switch

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Rear fog lamp switch
ElectricalRear fog lamp switch

REAR FOG LAMP SWITCH

Service repair no - 86.65.65

Remove

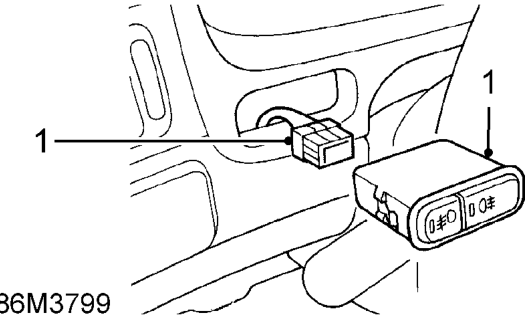

Rear fog lamp switch – Service repair no - 86.65.65
  1. Release switch from instrument surround and disconnect multiplug.

Refit

  1. Position switch, connect multiplug and secure switch to instrument surround.

EXTERIOR MIRROR SWITCH

Service repair no - 86.65.75

Remove

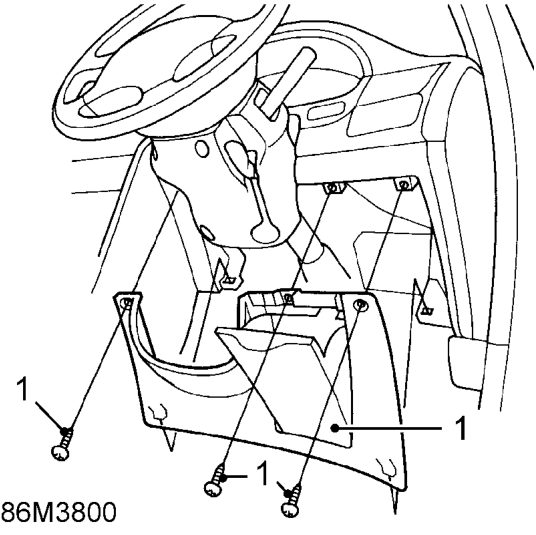

Exterior mirror switch – Service repair no - 86.65.75
  1. Remove drivers pocket, 3 retaining screws and remove fascia lower cover.

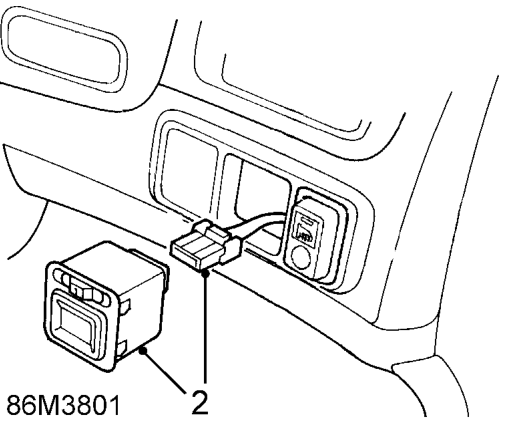

Exterior mirror switch – Remove drivers pocket, 3 retaining screws and remove fascia lower cover.
  1. Release mirror switch from fascia and disconnect multiplug.

Refit

  1. Position switch, connect multiplug and secure switch to fascia.
  2. Fit lower cover and drivers pocket.
