Air intake system

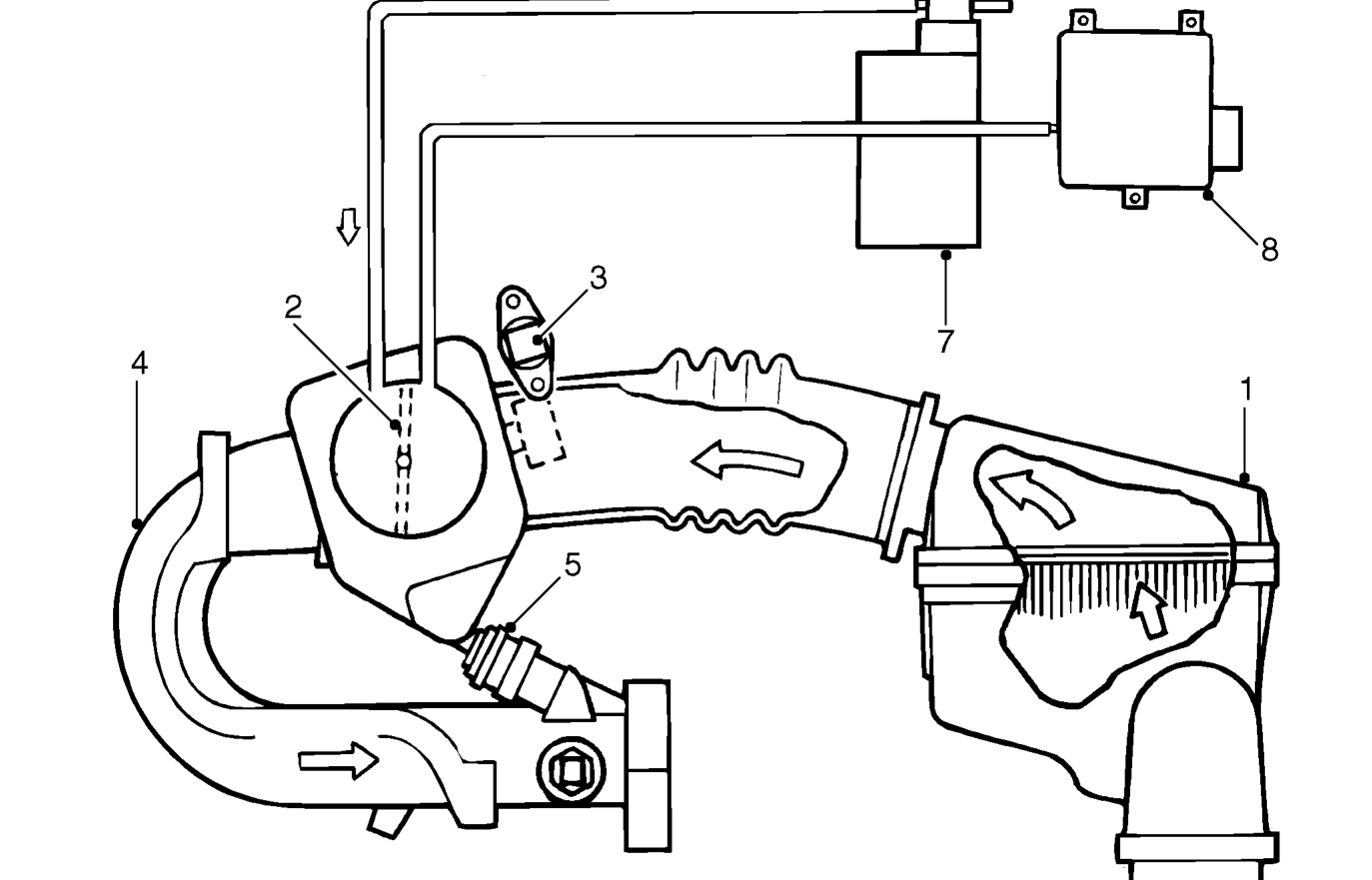

AIR INTAKE SYSTEM

1. Air cleaner element
2. Throttle disc
3. Idle air control valve
4. Inlet manifold

Intake air is drawn into the throttle housing through an air filter element. Incorporated in the throttle housing are the throttle disc, idle air bypass valve and the throttle potentiometer.

Air is passed from the throttle housing via the manifold chamber into the inlet manifold where it is mixed with fuel injected by the injectors before the mixture is drawn into the combustion chamber.

5. Injector
6. Evaporative emission canister purge valve
7. Evaporative emission canister
8. Engine Control Module (ECM)

An engine load signal is applied to the manifold absolute pressure sensor from the manifold chamber. This signal is used to calculate the fuel to be delivered by the injectors.
