Engine management system - MEMSEngine management system operation

ENGINE MANAGEMENT SYSTEM OPERATION

The Engine Control Module (ECM) monitors the conditions required for optimum combustion of fuel in the cylinder through sensors located at strategic points around the engine. From these sensor inputs, the engine control module can adjust the fuel quantity and timing of the fuel being delivered to the cylinders.

The main features are as follows:

  • A single ECM controls the fuel injection system and the ignition system. The ECM incorporates short circuit protection and can store intermittent faults on certain inputs. TestBook can interrogate the ECM for these stored faults.
  • The ECM is electronically immobilised preventing the engine from being started unless it receives a coded signal from the anti-theft control unit.
  • In conjunction with the throttle position sensor the ECM uses the speed/density method of air flow measurement to calculate fuel delivery. This method measures the inlet air temperature and inlet manifold pressure and assumes that the engine is a calibrated vacuum pump, with its characteristics stored in the ECM, it can then determine the correct amount of fuel to be injected.
Engine management system operation – The main features are as follows:

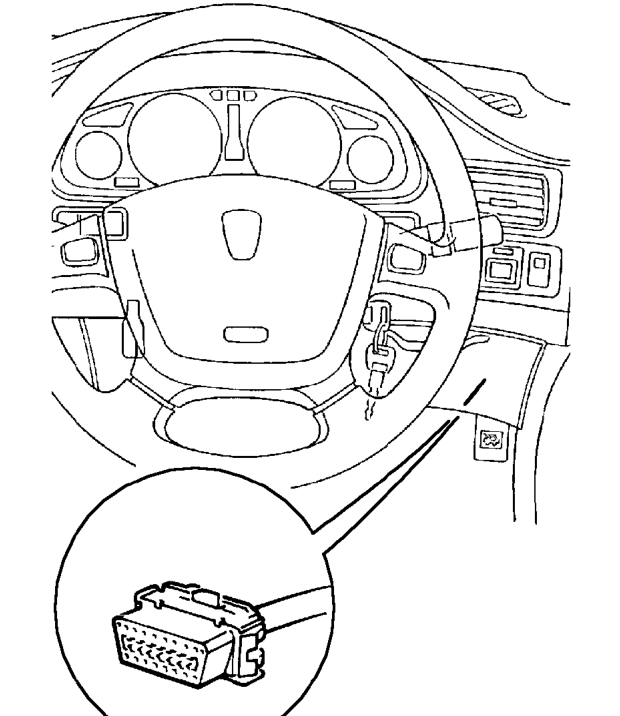

  • A separate diagnostic connector, located behind the ’A’ post lower trim panel in the drivers footwell, allows engine tuning or fault diagnosis to be carried out using TestBook without disconnecting the ECM harness multiplug.
  • The ECM harness multiplug incorporates specially plated pins to minimise oxidation and give improved reliability.
  • The ECM controls the operation of the radiator and air conditioning cooling fans based on signals received from engine coolant temperature sensor. If a high engine temperature is detected the ECM will prevent the air conditioning system from operating.
  • If certain system inputs fail, the ECM implements a back-up facility to enable the system to continue functioning, although a reduced level of performance.

IGNITION SYSTEM

The engine control module determines the optimum ignition timing based on the signals from the following sensors:

  1. Crankshaft position sensor - Engine speed and crankshaft position
  2. Manifold absolute pressure sensor - Engine load
  3. Engine coolant temperature sensor - Engine temperature
  4. Manifold absolute pressure sensor - Throttle pedal released
  5. Knock sensor - Engine noise and vibration (’T’ series only)

The engine management system uses no centrifugal or vacuum advance, timing being controlled by the ECM which is energised by the main relay within the relay module.

’K’ series only:

Spark distribution is achieved by means of a rotor arm and distributor mounted at the No.4 cylinder end of the inlet camshaft.
