Replacement (page 2 of 2)

Make

Rover

Model

600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Manifold & exhaust: repairs

Cooling system, manifold and exhaustReplacement · page 2 of 2

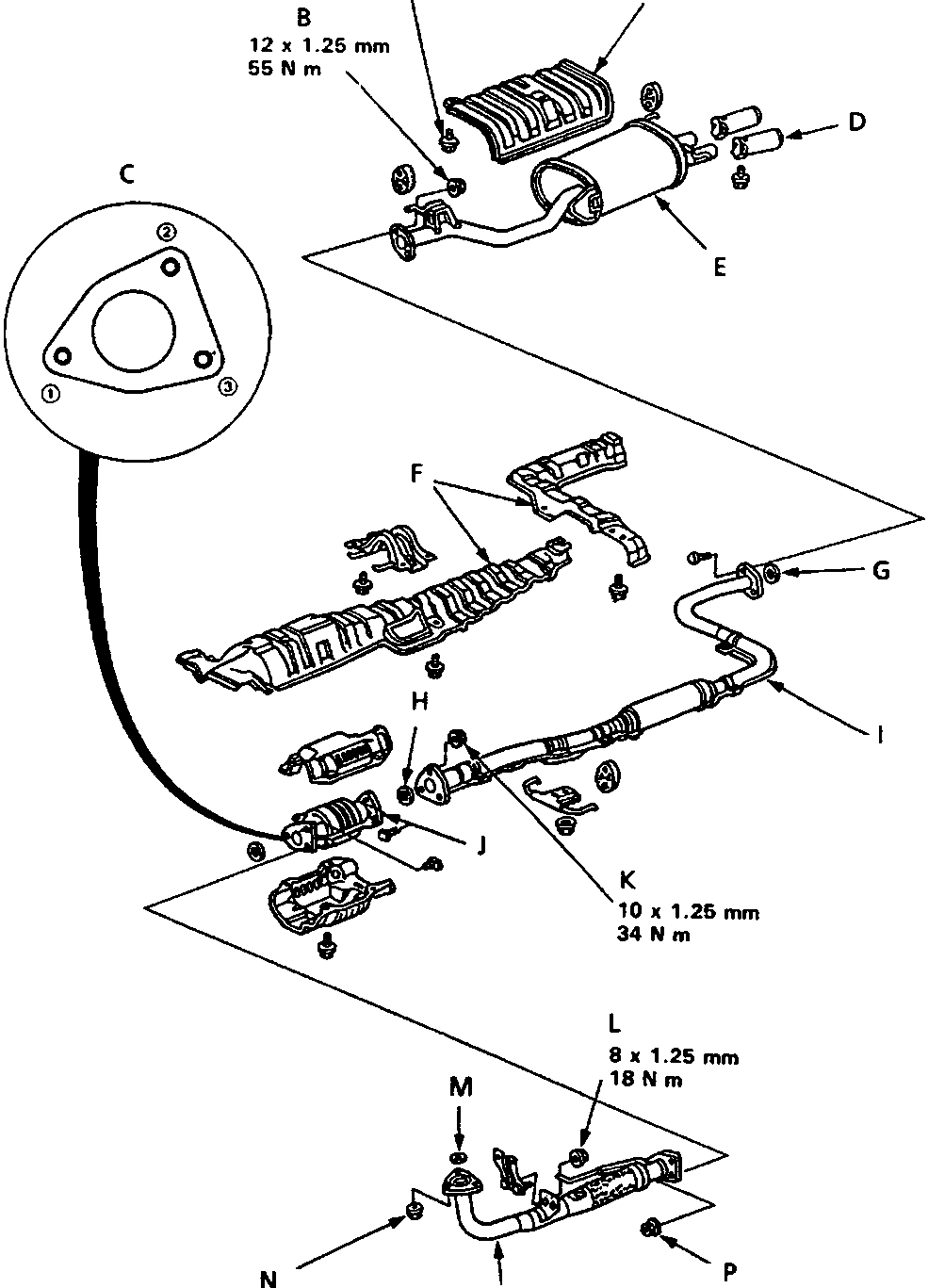

Replacement (page 2 of 2) – diagram from the Cooling system, manifold and exhaust chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

6 x 1.0 mm
10 N m

B
12 x 1.25 mm
55 N m

K
10 x 1.25 mm
34 N m

L
8 x 1.25 mm
18 N m

N
10 x 1.25 mm
55 N m

P
10 x 1.25 mm
34 N m

05 Engine
