Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Cylinder block: information: Special tools

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: information › Special tools
EngineSpecial tools

SPECIAL TOOLS

No. Honda Number Rover Number Description
1 07GAF-PH60300 18G1626-4/1 Gudgeon Pin Base Insert
2 07GAF-PH70100 18G1626-4/2 Pilot Collar
3 07HAF-PL20102 18G1626-4/3 Piston Base Head
4 07LAB-PV00100 18G1674 Ring Gear Holder
5 07LAF-PT20100 18G1698 Bearing Replacement Tool Set
6 07LAG-PT20100 18G1671 Balancer Shaft Lock Pin
7 07749-0010000 18G1354 Handle
8 07948-SB00101 18G1485 Attachment
9 07973-PE00310 18G1626-4/4 Gudgeon Pin Driver Shaft
10 07973-PE00320 18G1626-4/5 Gudgeon Pin Driver Head
11 07973-6570500 18G1626 Piston Base
12 07973-6570600 18G1626 Piston Base Spring

The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.

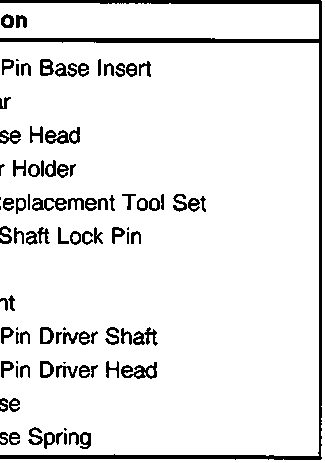

Special tools illustrations including gudgeon pin base insert, pilot collar, piston base head, ring gear holder, bearing replacement tool set, balancer shaft lock pin, handle, attachment, gudgeon pin driver shaft, gudgeon pin driver head, piston base, and piston base spring.
  1. Gudgeon Pin Base Insert
  2. Pilot Collar
  3. Piston Base Head
  4. Balancer Shaft Lock Pin
  5. Bearing Replacement Tool Set
  6. Handle
  7. Attachment
  8. Gudgeon Pin Driver Shaft
  9. Gudgeon Pin Driver Head
  10. Piston Base
  11. Piston Base Spring

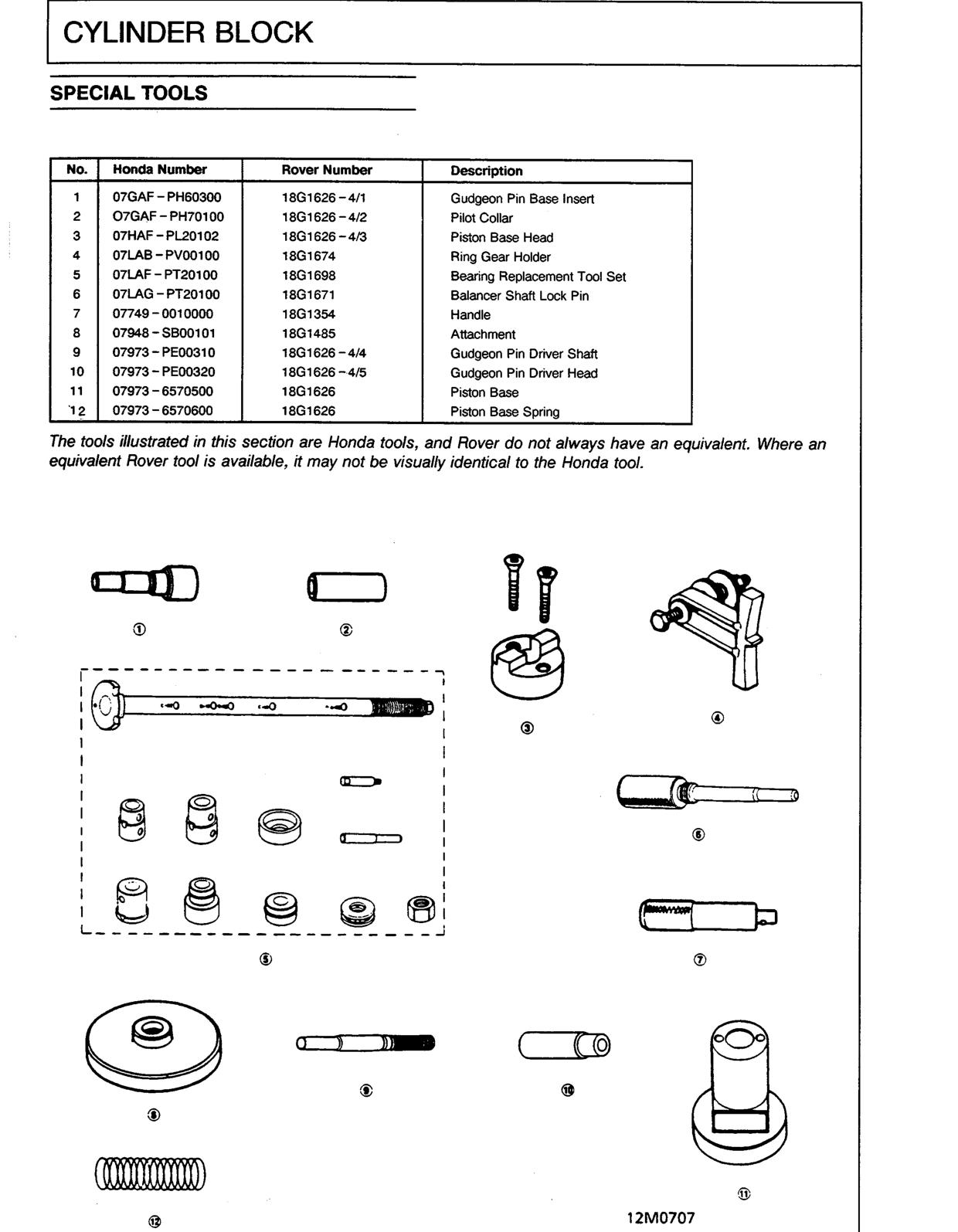

Original page
