Manual gearboxSpecial tools

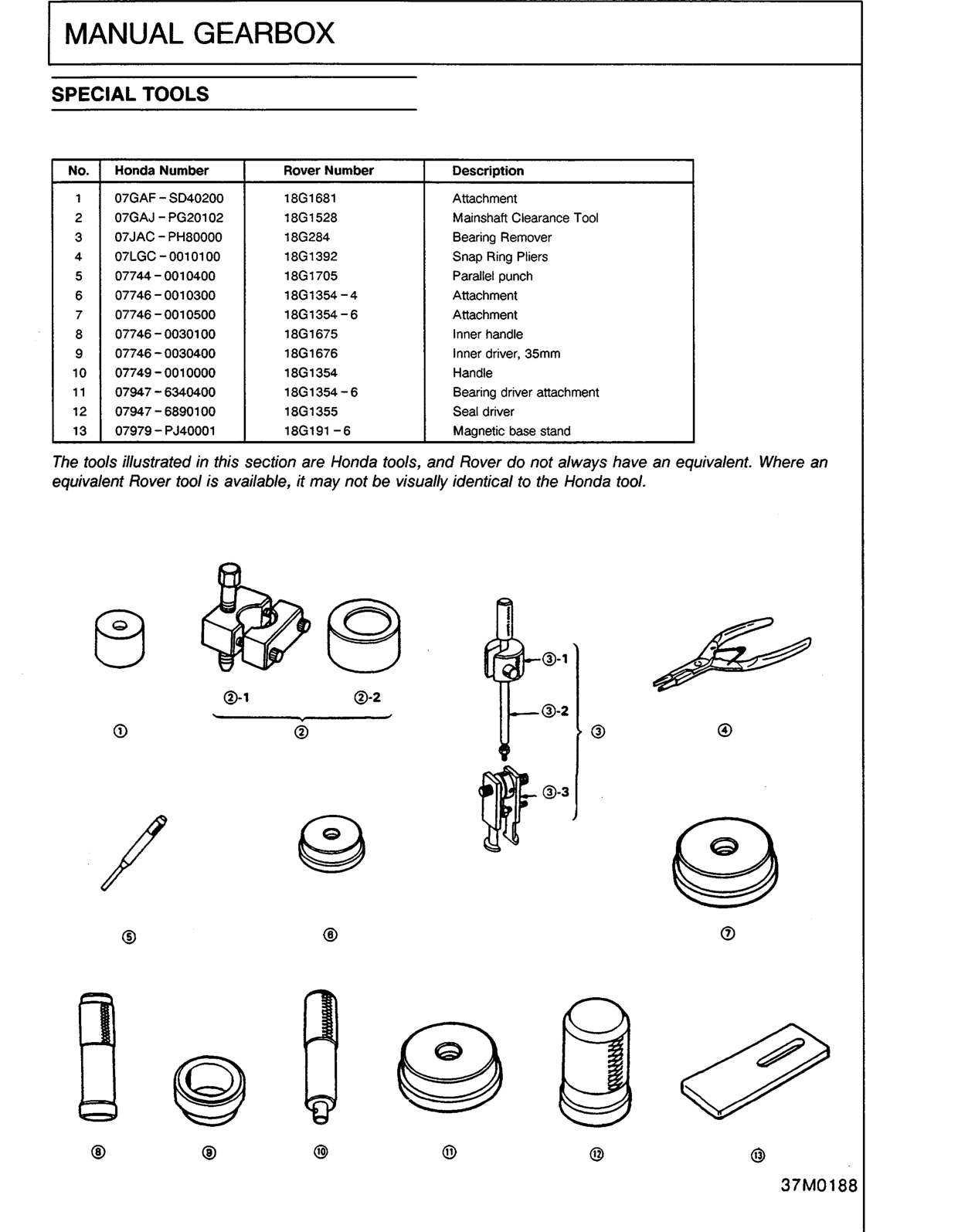

SPECIAL TOOLS

No. Honda Number Rover Number Description
1 07GAF – SD40200 18G1681 Attachment
2 07GAJ – PG20102 18G1528 Mainshaft Clearance Tool
3 07JAC – PH80000 18G284 Bearing Remover
4 07LGC – 0010100 18G1392 Snap Ring Pliers
5 07744 – 0010400 18G1705 Parallel punch
6 07746 – 0010300 18G1354 – 4 Attachment
7 07746 – 0010500 18G1354 – 6 Attachment
8 07746 – 0030100 18G1675 Inner handle
9 07746 – 0030400 18G1676 Inner driver, 35mm
10 07749 – 0010000 18G1354 Handle
11 07947 – 6340400 18G1354 – 6 Bearing driver attachment
12 07947 – 6890100 18G1355 Seal driver
13 07979 – PJ40001 18G191 – 6 Magnetic base stand

The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.

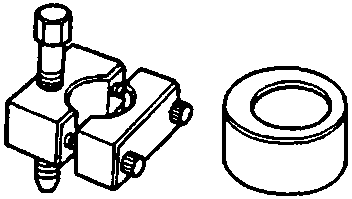

Attachment (No. 1)

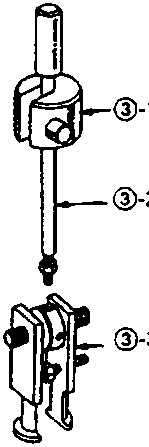

Mainshaft Clearance Tool (No. 2)
Bearing Remover (No. 3)
Snap Ring Pliers (No. 4)
Parallel punch (No. 5)
Attachment (No. 6)
Attachment (No. 7)
Inner handle (No. 8)
Inner driver, 35mm (No. 9)
Handle (No. 10)
Bearing driver attachment (No. 11)
