REFRIGERANT RECOVERY RECYCLING RECHARGING

An air conditioning portable Refrigerant Recovery Recycling Recharging Station for use with R134a refrigerant incorporates all the features necessary to recover refrigerant R134a from the A/C system, to filter and remove moisture, to evacuate and recharge with reclaimed refrigerant. The unit can also be used for performance testing and air conditioning system analysis.

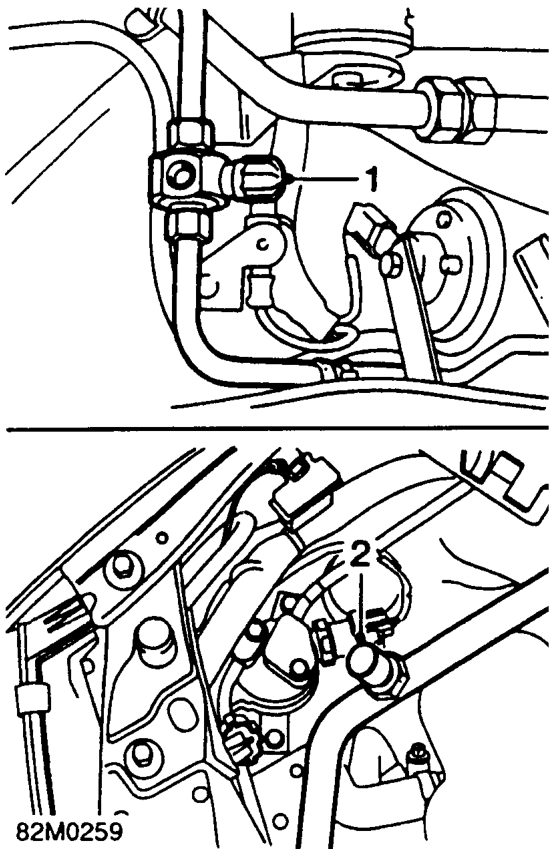

Service connections

1. High pressure service connection
2. Low pressure service connection

Recovery and recycling

1. Connect a refrigerant station to high and low pressure servicing connections.
2. Operate the refrigerant recovery system in accordance to the manufacturers instructions.

WARNING: Refrigerant must always be recycled before re-use, to ensure that the purity of the refrigerant is high enough for safe use in the air conditioning system.

Recycling should always be carried out with equipment which is design certified by Underwriter Laboratory Inc. for compliance with SAE - J1991. Other equipment may not recycle refrigerant to the required level of purity.

• A R134a Refrigerant Recovery Recycling
• Recharging Station must not be used with any
• other type of refrigerant.

• Refrigerant R134a from domestic and
• commercial sourses must not be used in motor
• vehicle air conditioning systems.
