Rover 620 Diesel Repair Manual Supplement (1995-1999)12 · Body
12 · Body & interior

Under belly panel

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs › Under belly panel
BodyUnder belly panel

UNDER BELLY PANEL

Service repair no - 76.10.50

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

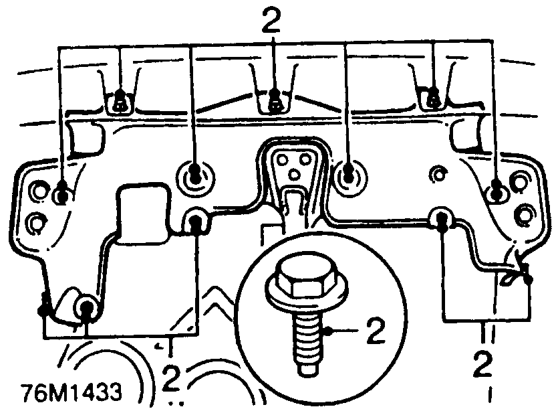

Under belly panel – Raise front of vehicle.
  1. Remove 12 bolts securing under belly panel to underside of vehicle.
  2. Release and remove under belly panel from beneath vehicle.

Refit

  1. Position under belly panel to underside of vehicle, fit and tighten retaining bolts.
  2. Remove stand(s) and lower vehicle.

UNDER BELLY PANEL - RH

Service repair no - 76.10.43

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

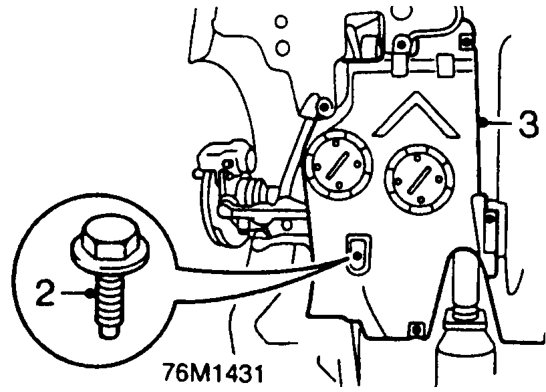

Under belly panel - rh – Raise front of vehicle.
  1. Remove 6 bolts securing RH under belly panel.
  2. Remove RH under belly panel.

Refit

  1. Fit RH under belly panel.
  2. Fit and tighten bolts securing under belly panel.
