BodyUnder belly panel - LH

UNDER BELLY PANEL - LH

Service repair no - 76.10.42

Remove

  1. Remove under belly panel. See this section.

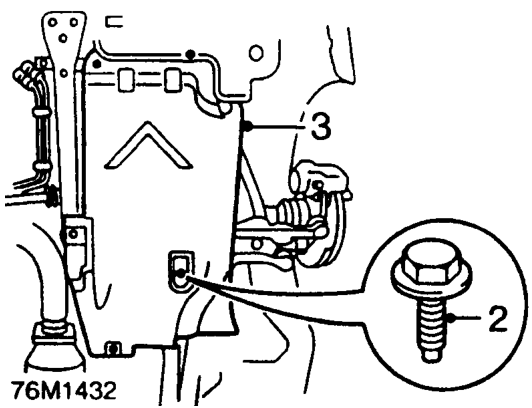

Under belly panel - lh – Remove under belly panel. See this section.
  1. Remove 4 bolts securing LH under belly panel.
  2. Remove LH under belly panel.

Refit

  1. Fit LH under belly panel.
  2. Fit and tighten bolts securing LH under belly panel.
  3. Fit under belly panel. See this section.
