Rover 620 Diesel Repair Manual Supplement (1995-1999)09 · Drive shafts
09 · Transmission

Drive shaft (page 2 of 3)

Make
Rover
Model
600 620 Diesel Repair Manual Supplement
Year
1995–1999
Section
Repairs
Drive shaftsDrive shaft · page 2 of 3
Diagram

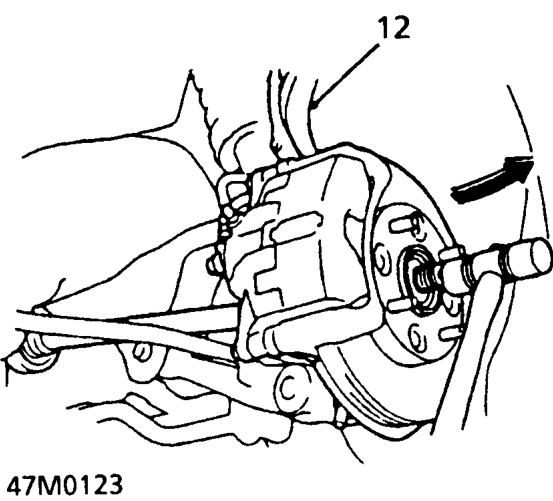

  1. Pull knuckle outward and release the drive shaft outboard joint from the front wheel hub using a mallet.
Pull knuckle outward and release the drive shaft outboard joint from the front wheel hub u

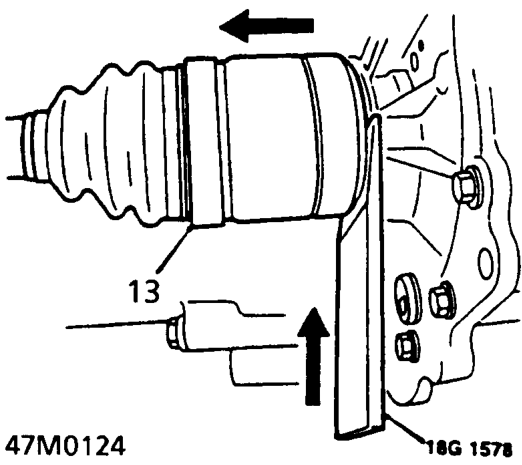

  1. Using tool 18G 1578, release drive shaft from differential.

CAUTION: Withdraw drive shaft joint horizontally to avoid damage to differential oil seal.

  1. Remove drive shaft.
Remove drive shaft.

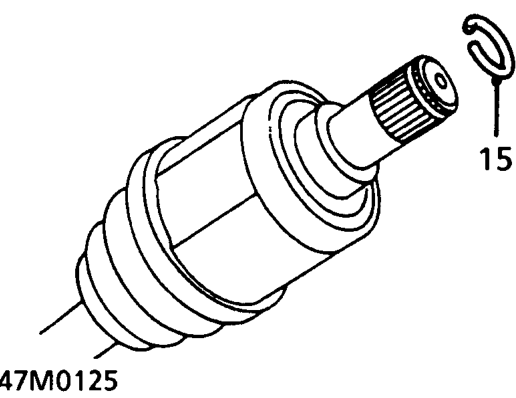

  1. Remove and discard circlip from groove in drive shaft.
  2. Secure plastic bag over each joint to prevent damage and contamination.
